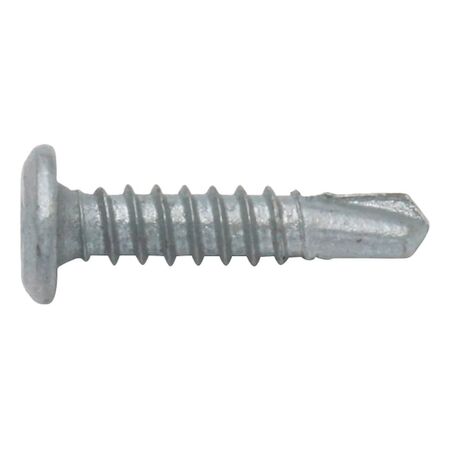

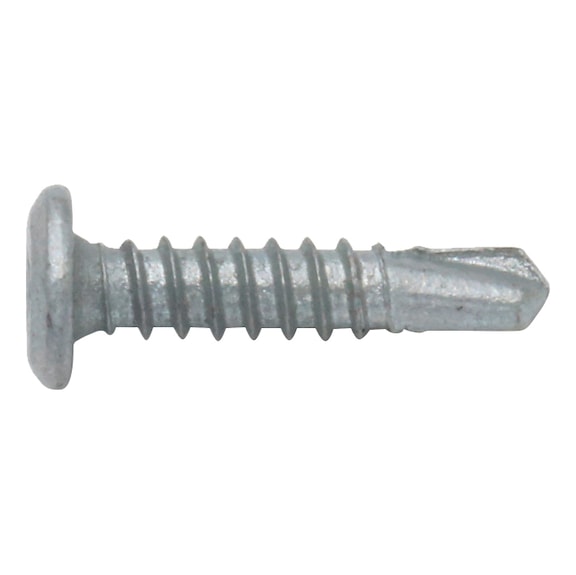

Drilling Screws with Low Profile Wafer Head | Self-Drilling Tip | Corrosion Resistant | @Pack of 100 | by Wurth
Drilling screws with a low profile wafer head are perfect for fastening light to medium materials without the need for pre-drilling. Made from steel and featuring a Class 3 hot dip galvanised coating, these screws are corrosion resistant and ideal for both indoor and outdoor applications. Designed for professionals, they ensure a flush finish and are suitable for areas with low height tolerances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Drilling Screws with Low Profile Wafer Head | Self-Drilling Tip | Corrosion Resistant | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 3665503330
Alternatively Known As: Self-drilling wafer head screws, low profile drilling screws, corrosion resistant self-tapping screws
Technical Specifications
- Material: Steel
- Surface: Class 3 hot dip galvanised (HDG)
- RoHS-compliant: Yes
- Nominal diameter: 4.8 mm
- Length: 30 mm
- Head diameter: 9.5 mm
- Head height: 2.5 mm
- Drill tip length: 5.0 mm
- Internal drive: H2
- Head type: Wafer head
- Thread type: Self-tapping screw thread
- Dimensions (H x L x W): 2.5mm x 30mm x 9.5mm
- Weight: 0.05 kg
Key Features
- Low-profile wafer head for almost flush finish
- Self-drilling tip eliminates need for pre-drilling
- Class 3 hot dip galvanised (HDG) corrosion resistant coating
- Suitable for use where low height tolerances or clearances are needed
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and safety.
Applications
- Light to medium materials fastening
- Indoor and outdoor use
- Steel fastening without pre-drilling
Standards & Compliance
- Complies with AS 3566.1 Steel, Class 3
Environmental Benefits
- Corrosion resistant coating extends product life reducing waste
- Self-drilling feature reduces energy and material use by eliminating pre-drilling
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Drilling Screws with Low Profile Wafer Head 100 PCS are available for immediate purchase. Ideal for fastening light to medium materials in both indoor and outdoor applications.
