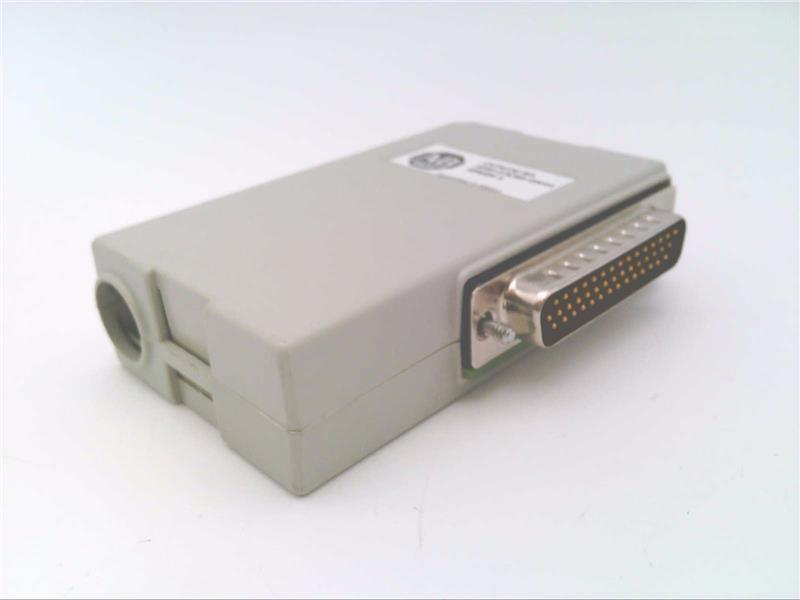

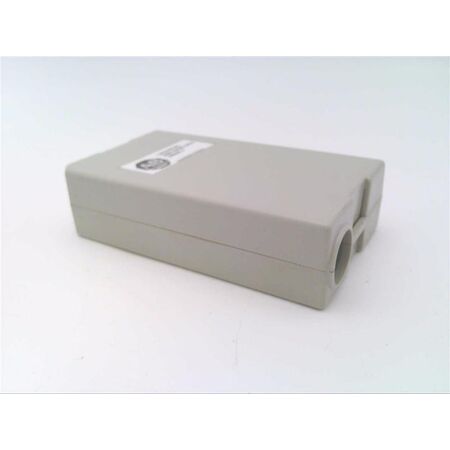

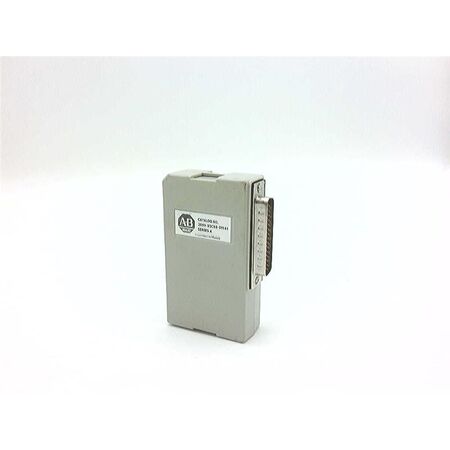

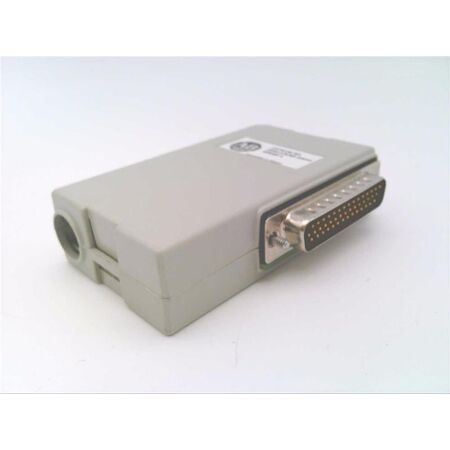

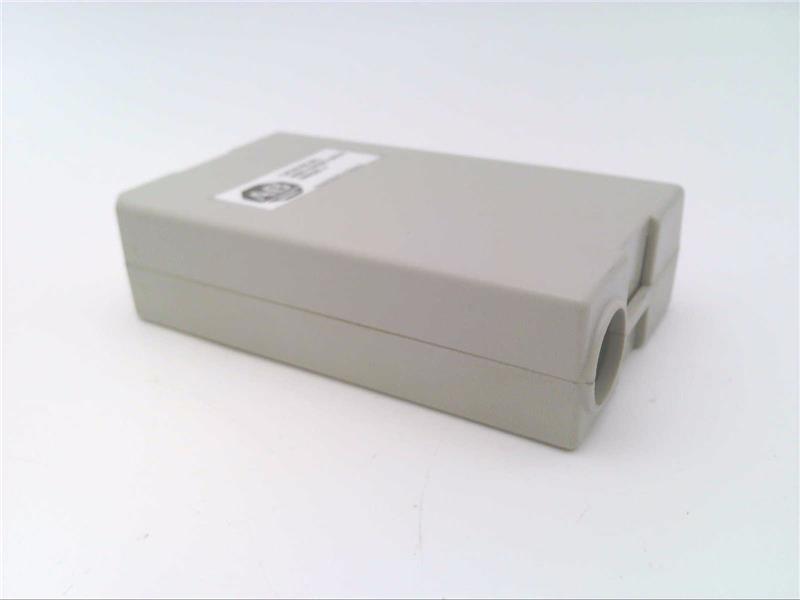

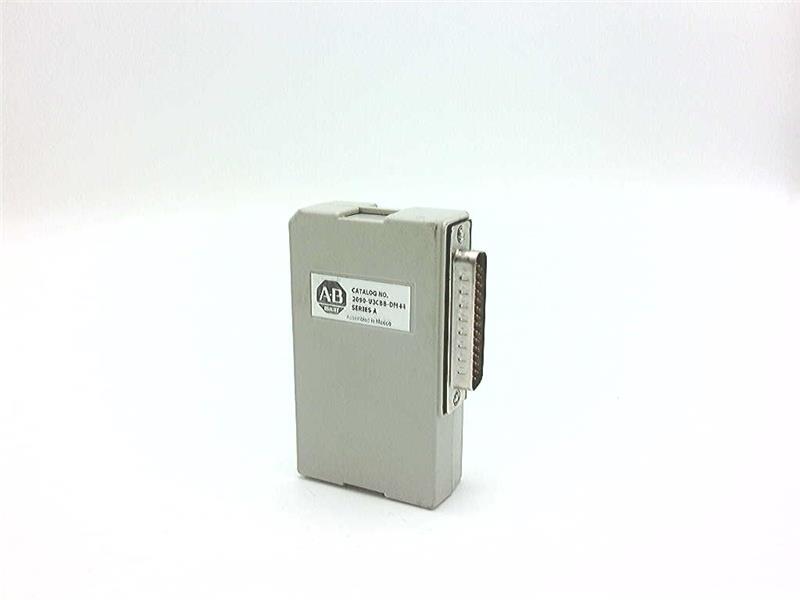

Product Name/Title: Allen-Bradley 2090U3CBBDM44 Drive-Mounted Breakout Board
Brand: Allen-Bradley
SKU: 2090U3CBBDM44
Alternatively Known As: 2090U3CBBDM44 Breakout Board, Ultra3000 Drive Breakout Board, Allen-Bradley Drive Interface Board
Technical Specifications
- Compatible with 2090 Series Ultra3000 drives
- 44-pin male D-sub connector
- 44 connection points
- Includes 24-5 VDC auxiliary power converter
- Dimensions (H x L x W): 30mm x 80mm x 120mm
- Weight: 0.3 kg
Key Features
- Drive-mounted breakout board for 2090 Series Ultra3000 drives
- Includes 24-5 VDC auxiliary power converter
- 44-pin male D-sub connector with 44 connections
Professional Installation Requirements
- Installation should be performed by qualified industrial automation technicians or electricians to ensure proper integration with Ultra3000 drives.
Applications
- Industrial automation systems
- Ultra3000 drive control setups
- Factory and process control environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient drive control reducing energy waste in industrial applications
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply as product is discontinued.
Available Now
The Allen-Bradley 2090U3CBBDM44 Drive-Mounted Breakout Board is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for industrial automation and drive control applications.
