DSL-0612B03M075KM0 | Connectors and cables

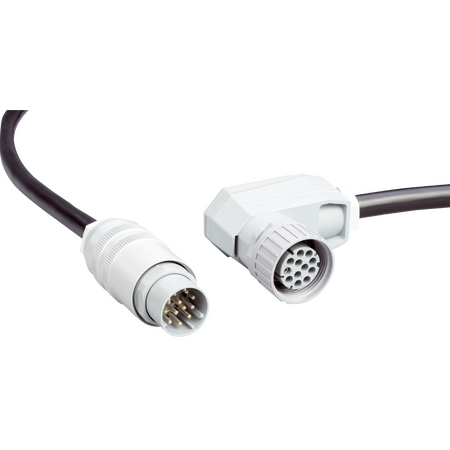

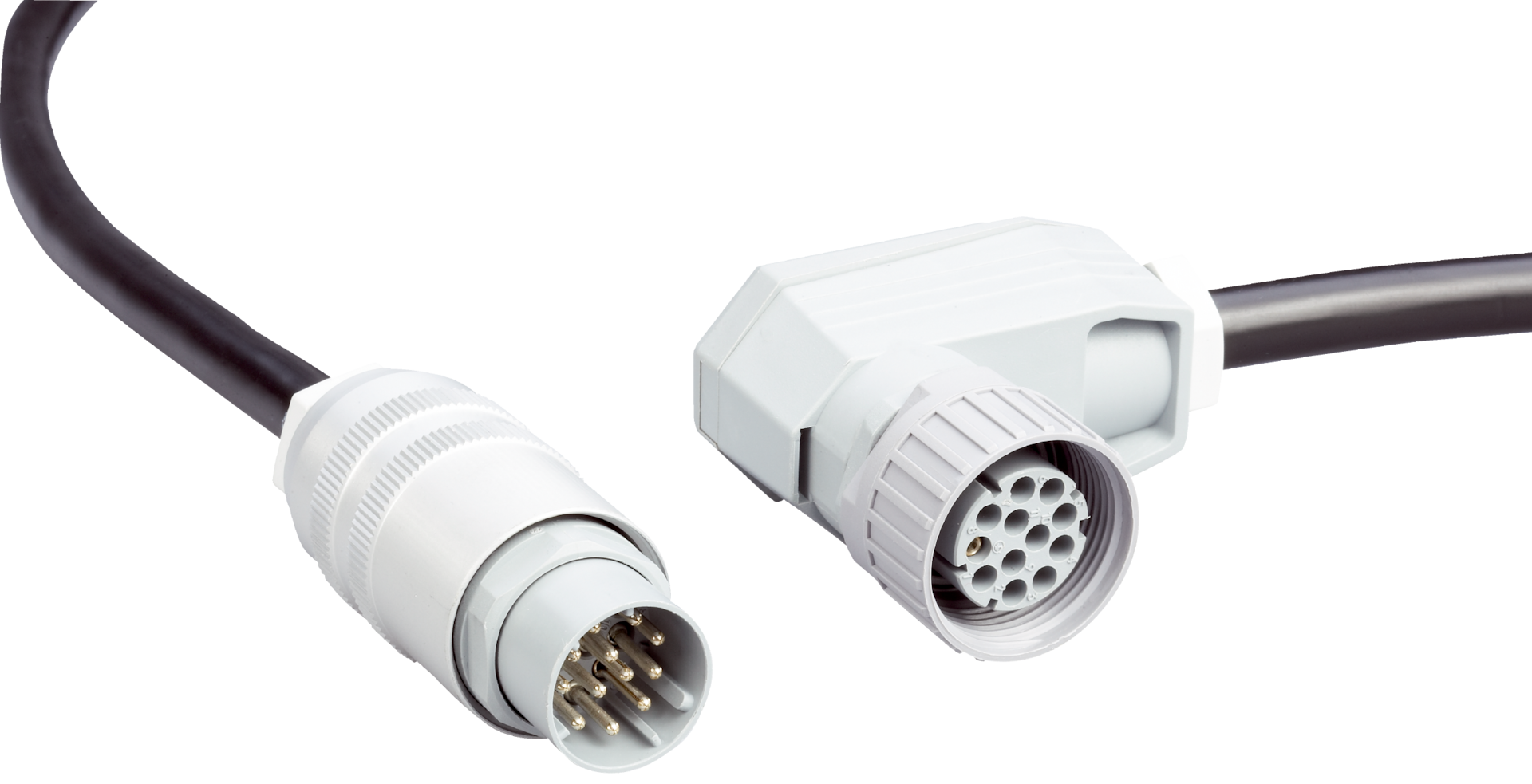

The SICK DSL-0612B03M075KM0 is a 3-meter sensor/actuator cable featuring M26 12-pin connectors, designed for reliable industrial automation connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DSL-0612B03M075KM0 | Connectors and cables
Brand: SICK
SKU: 2022290
Alternatively Known As: M26 12-pin sensor cable, actuator connection cable, industrial automation cable
Technical Specifications
- Connection type head A: Female connector, M26, 12-pin, angled
- Connection type head B: Male connector, M26, 12-pin, straight
- Cable length: 3 m
- Cable wires: 12-wire
- Jacket material: PVC
- Conductor cross section: 0.75 mm²
- Shielding: Unshielded
- Signal type: Sensor/actuator cable
- Dimensions (H x L x W): 10mm x 3000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector M26, 12-pin, angled at head A
- Male connector M26, 12-pin, straight at head B
- 3 meter length, 12-wire PVC cable
- Unshielded sensor/actuator cable
- Conductor cross section of 0.75 mm²
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation sensor connections
- Actuator signal transmission
- Factory equipment wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- PVC jacket provides durability and resistance to environmental factors, reducing replacement frequency.
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK DSL-0612B03M075KM0 sensor/actuator cable is available for immediate purchase, ideal for industrial automation and sensor connection applications.
