DSL-1258-G0M1C | Connectors and cables

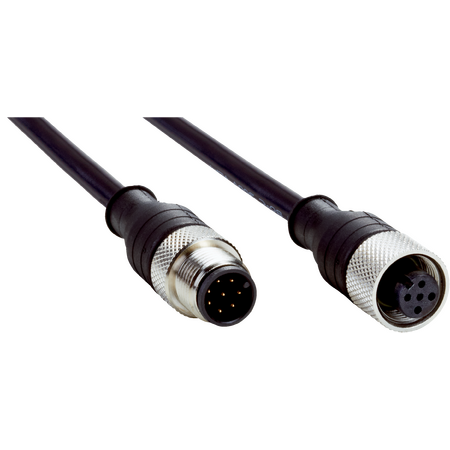

The SICK DSL-1258-G0M1C is a robust M12 sensor/actuator cable connector with a 0.1 m PUR halogen-free cable, designed for industrial environments including zones with oils and lubricants and drag chain operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DSL-1258-G0M1C | Connectors and cables
Brand: SICK
SKU: 6057015
Alternatively Known As: M12 Sensor Cable Connector, M12 Actuator Cable, Industrial Sensor Connector, M12 5-pin to 8-pin Cable
Technical Specifications
- Connection type head A: Female connector, M12, 5-pin, straight
- Connection type head B: Male connector, M12, 8-pin, straight
- Connector material: TPU
- Locking nut material: Zinc die-cast, nickel-plated
- Tightening torque: 0.6 Nm
- Cable length: 0.1 m
- Cable wires: 5-wire, PUR, halogen-free
- Cable diameter: 5 mm
- Conductor cross section: 0.34 mm²
- Shielding: Unshielded
- Bending radius flexible use: > 10 x cable diameter
- Bending radius stationary position: > 5 x cable diameter
- Operating temperature flexible use: -25 °C to +80 °C
- Operating temperature stationary position: -50 °C to +80 °C
- Current loading: ≤ 2 A
- Reference voltage: ≤ 30 V
- Traversing speed: 3.3 m/s
- Travelling distance: 5 m
- Acceleration: ≤ 5 m/s²
- Signal type: Sensor/actuator cable
- Enclosure rating: IP67
- Dimensions (H x L x W): 10mm x 100mm x 10mm
- Weight: 0.1 kg
Key Features
- Female connector M12, 5-pin, straight on head A
- Male connector M12, 8-pin, straight on head B
- Connector material made of TPU with black color
- Locking nut made of zinc die-cast, nickel-plated
- Cable length 0.1 m, 5-wire PUR halogen-free jacket
- Unshielded cable with 0.34 mm² conductor cross section
- High bending radius for flexible use and stationary position
- Operating temperature range from -50 °C to +80 °C
- IP67 rated enclosure for dust and water protection
- Suitable for sensor/actuator cable applications
Professional Installation Requirements
- Installation should be performed by a qualified technician familiar with industrial sensor and actuator cabling to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation sensor and actuator connections
- Zones with oils and lubricants
- Drag chain operation environments
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Halogen-free PUR cable jacket reduces harmful emissions in case of fire
- Durable materials extend product life and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK DSL-1258-G0M1C M12 sensor/actuator cable connector is available for immediate purchase, ideal for industrial automation and sensor connection applications.
