DSL-2317-G01MJB6 | Connectors and cables

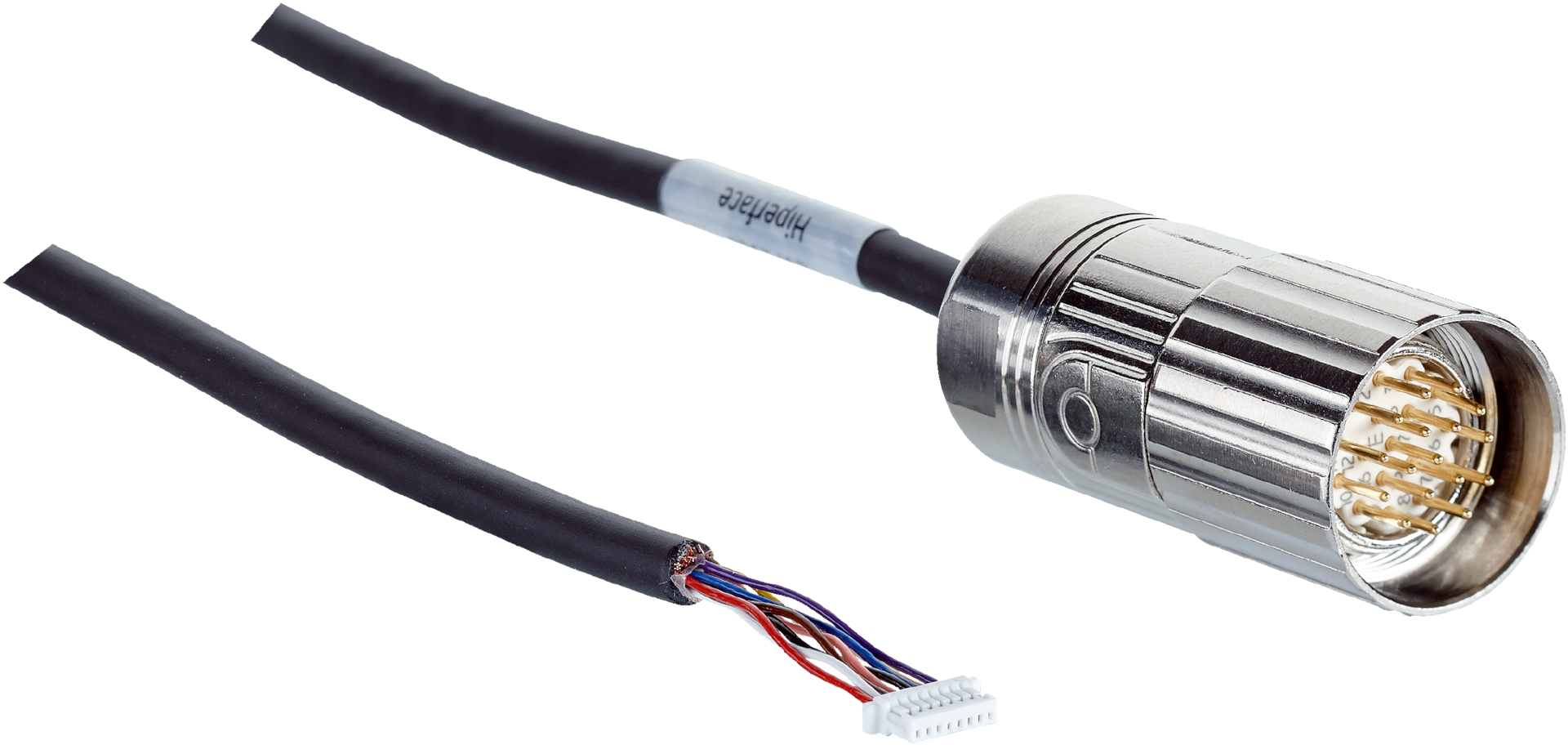

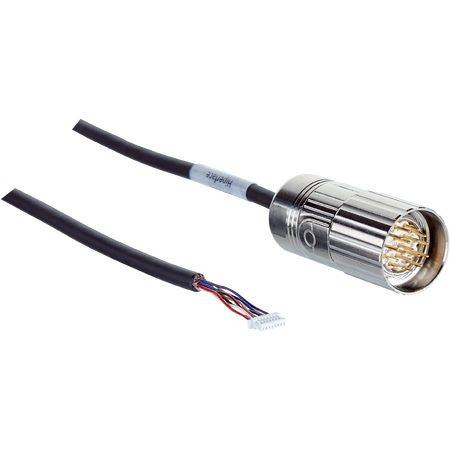

The SICK DSL-2317-G01MJB6 is a 1 meter long connector cable featuring a female JST 8-pin and male M23 17-pin connectors, designed for reliable industrial sensor and actuator connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: DSL-2317-G01MJB6 | Connectors and cables
Brand: SICK
SKU: 2071327
Alternatively Known As: SICK connector cable, HIPERFACE cable, JST to M23 cable, industrial sensor cable
Technical Specifications
- Connection type head A: Female connector, JST, 8-pin, straight
- Connection type head B: Male connector, M23, 17-pin, straight
- Cable length: 1 m
- Number of wires: 8
- Jacket color: Black
- Cable diameter: 5.6 mm
- Conductor cross section: 0.15 mm²
- Shielding: Unshielded
- Signal type: HIPERFACE®
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- Female JST 8-pin straight connector on head A
- Male M23 17-pin straight connector on head B
- 1 meter length, 8-wire cable
- Black jacket color
- Unshielded cable with 0.15 mm² conductor cross section
- Supports HIPERFACE® signal type
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and system integrity.
Applications
- Industrial automation systems
- Sensor and actuator connections
- Machine control and data transmission
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK DSL-2317-G01MJB6 connector cable is available for immediate purchase, ideal for industrial automation and sensor connectivity applications.
