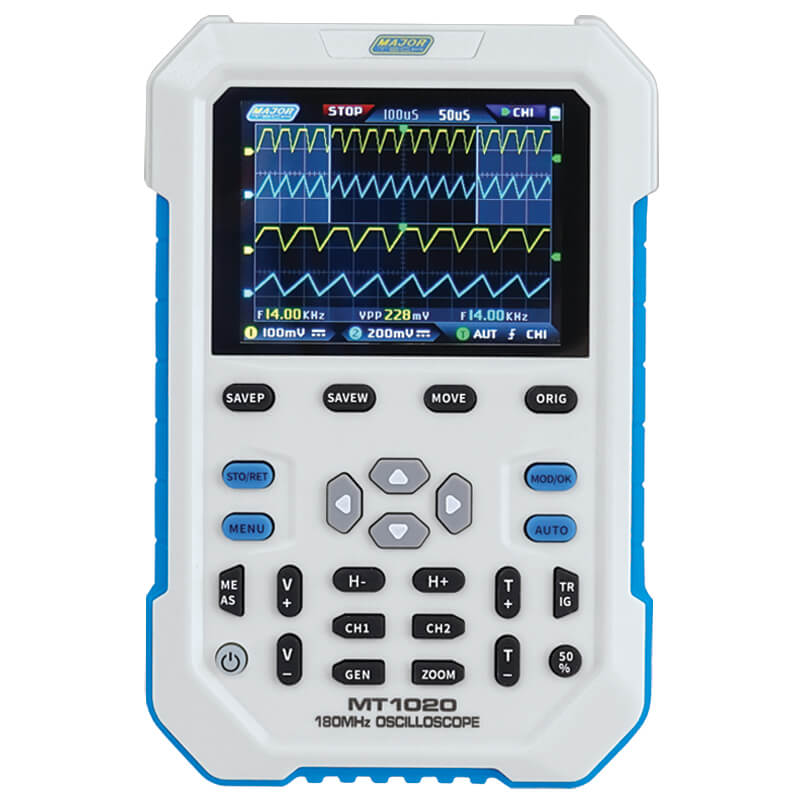

Dual Channel Oscilloscope 180MHz | 500MS/s Sampling Rate | Handheld Design | 2.8-Inch Screen by Majortech
Experience precision with the 180MHz dual channel oscilloscope, featuring a 500MS/s sampling rate and a 2.8-inch IPS screen—ideal for electronics testing and signal analysis. Built for engineers and educators, it offers portable convenience and rapid waveform refresh for effective troubleshooting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Dual Channel Oscilloscope 180MHz | 500MS/s Sampling Rate | Handheld Design | 2.8-Inch Screen by Majortech
Brand: Majortech
SKU: MT1020
Alternatively Known As: Handheld Digital Oscilloscope, Dual Channel Oscilloscope, Portable Oscilloscope, Signal Analyzer, MT1020 Oscilloscope
Technical Specifications
- Analogue Bandwidth: 180MHz
- Sampling Rate: 500MS/s
- Input Coupling: AC/DC
- Rise Time: 2.5 Seconds
- Storage Depth: 120Kpts
- Input Impedance: 1MΩ to 18pF
- Vertical Sensitivity: 5mV to 10V (1X)
- Time Base Range: 5ns to 50s
- Trigger Detection: Digital Trigger
- Trigger Mode: Auto / Single / Normal
- Trigger Edge: Rising / Falling
- Measurement Range: 40mV to 80V (1X)
- Screenshot Storage: 90
- Capture Signal: 500
- Signal Generator: 14 Standard Function Signals
- Waveform Storage: 250 Groups
- Parameter Measurement: 12 Kinds
- Cursor Measurement: Frequency / Period / Amplitude
- Screen Size: 71mm / 2.8 Inch
- Screen Resolution: 320 x 240 Pixel
- Display Technology: IPS Full View
- Battery Capacity: 3000mAh Rechargeable
- Standby Time: 3.5 Hours on Full Charge
- Dimensions (H x L x W): 135mm x 40mm x 90mm
- Weight: 0.5 kg
Key Features
- Handheld dual-channel digital phosphor oscilloscope with integrated signal generator
- 180MHz analogue bandwidth and 500MS/s sampling rate
- 2.8-inch IPS full-vision LCD screen with digital fluorescent technology
- Rapid waveform refresh rate up to 50,000 wfm/s
- ZOOM time base for digital protocol signal analysis
- Vertical sensitivity as low as 5mV for accurate small signal measurement
- Ultra-high signal-to-noise ratio with sealed shielding and stable circuit feedback
- Adjustable automatic bandwidth limit and adaptive trigger suppression
- DDS signal generator with 14 function waveforms and customizable chopping waveform
- Three time base modes: YT, XY, and rolling
- Manual cursor measurement for frequency, period, and amplitude
- USB data export for easy file transfer
- 5V 2A fast charging with 80% charge in one hour
Professional Installation Requirements
- No professional installation required; device is handheld and ready to use out of the box.
Applications
- Electronics testing and troubleshooting
- Signal analysis in research and development
- Educational laboratories and training
- Field service and maintenance of electronic equipment
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Portable design reduces need for multiple devices, lowering electronic waste
- Energy-efficient operation with rechargeable battery
- Fast charging reduces power consumption time
Warranty Information
1 year warranty covering manufacturing defects and hardware malfunctions.
Available Now
The Majortech 180MHz Dual Channel Oscilloscope MT1020 is available now for immediate purchase. Ideal for electronics testing, signal analysis, and educational use.
