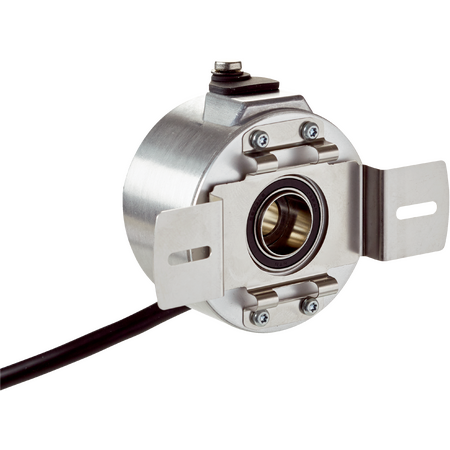

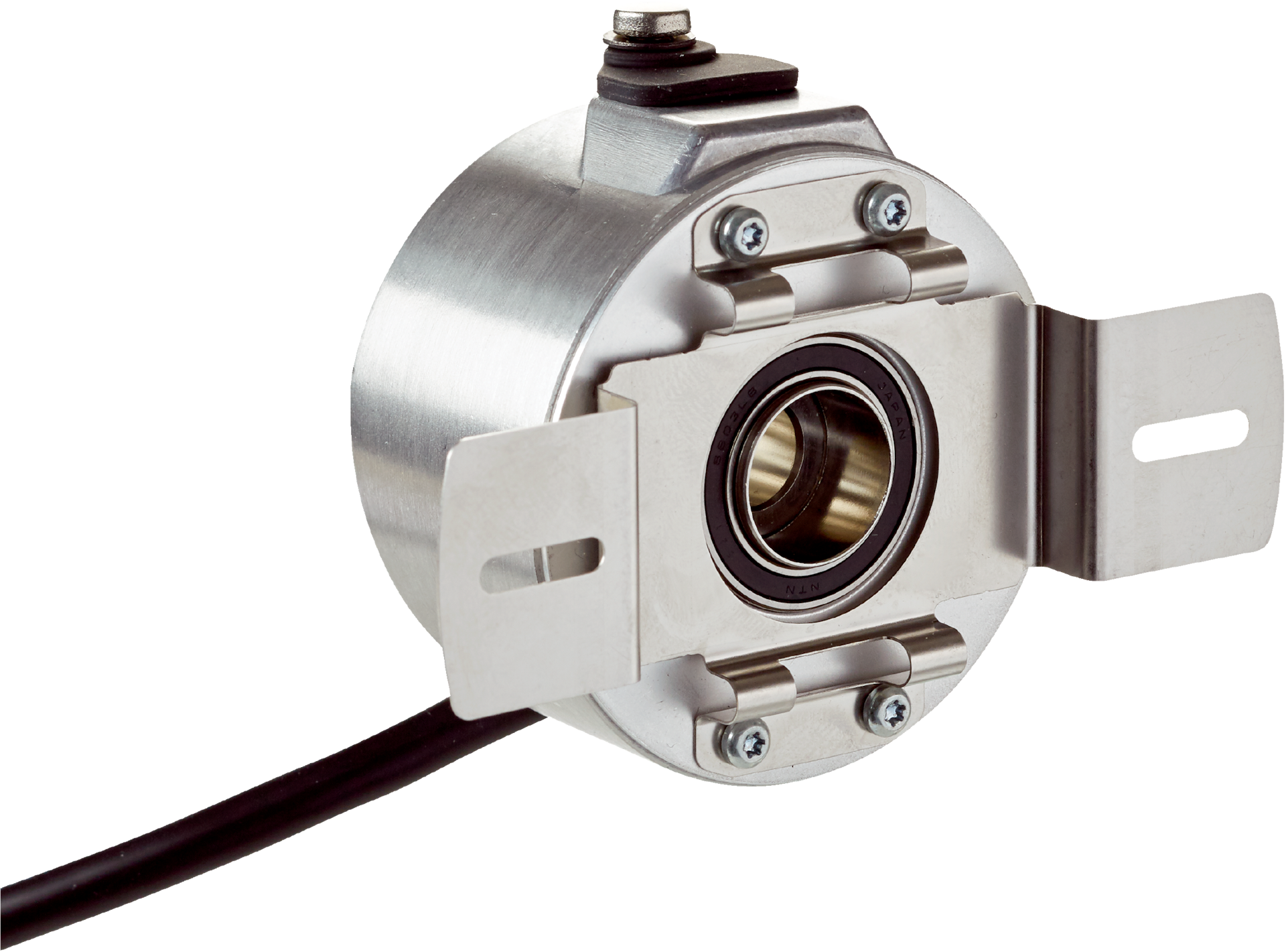

Product Name/Title: DUS60E-RDKK0AAA | Incremental encoders
Brand: SICK
SKU: 1084301
Alternatively Known As: Incremental rotary encoder, rotary position sensor, shaft encoder, industrial encoder
Technical Specifications
- Measuring step: 90° electric/pulses per revolution
- Measuring step deviation: ±18° per pulses per revolution
- Duty cycle: ≤ 0.5 ± 5%
- Communication interface: Incremental TTL/HTL
- Number of signal channels: 6
- Programmable via DIP switch for pulses per revolution, output voltage, and direction
- Initialization time: < 5 ms
- Output frequency: up to 60 kHz
- Load current: ≤ 30 mA per channel
- Operating current: ≤ 120 mA without load
- Power consumption: ≤ 1.25 W without load
- Connection type: 8-wire cable, 1.5 m length
- Supply voltage: 4.75 to 30 V
- Reference signal: 1, positioned at 180° gated with A
- Mechanical design: Through hollow shaft with 10 mm diameter
- Flange type: 2-point stator coupling, slot, hole diameter 63 mm – 83 mm
- Materials: Stainless steel shaft, aluminum flange and housing, PVC cable
- Start-up torque: 0.5 Ncm at +20°C
- Operating torque: 0.4 Ncm at +20°C
- Permissible static movement: ±0.3 mm radial, ±0.5 mm axial
- Permissible dynamic movement: ±0.1 mm radial, ±0.2 mm axial
- Operating speed: 1,500 min⁻¹
- Moment of inertia of rotor: 50 gcm²
- Bearing lifetime: 3.6 x 10⁹ revolutions
- Angular acceleration: ≤ 500,000 rad/s²
- EMC compliance: EN 61000-6-2 and EN 61000-6-3
- Enclosure rating: IP65
- Operating temperature range: -30°C to +90°C
- Storage temperature range: -40°C to +75°C
- Shock resistance: 100 g (EN 60068-2-27)
- Vibration resistance: 30 g, 10 Hz to 2,000 Hz (EN 60068-2-6)
- Dimensions (H x L x W): 63mm x 83mm x 63mm
- Weight: 0.25 kg
Key Features
- Incremental communication interface with TTL/HTL selectable output
- 6-channel output with programmable DIP switch parameters
- High output frequency up to 60 kHz
- Robust mechanical design with through hollow shaft and stainless steel shaft
- IP65 rated enclosure for protection against dust and water
- Reverse polarity and short-circuit protection
- Operating temperature range from -30°C to +90°C
- Low start-up and operating torque for efficient performance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and mechanical integration of incremental encoders to ensure proper connection and calibration.
Applications
- Industrial automation and control systems
- Position and speed measurement in machinery
- Robotics and conveyor systems
- Motor feedback and control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
