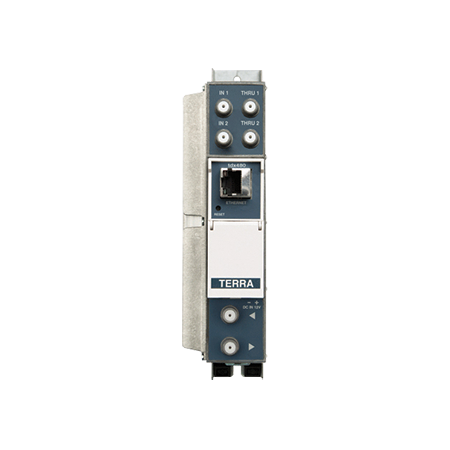

DVB-S/S2 to DVB-T Transmodulator | 8x Input/Output | Real-Time Processing | Fan-Assisted by Matchmaster

BRAND: Matchmaster
SKU: 14MM-TDX480
$3,804.30 List price: $4,604.60
+ −
30 Days Return Delivery Options
DVB-S/S2 to DVB-T transmodulator with 8x input and output—ideal for broadcasting and digital signage. Built for versatile application, with real-time processing and fan-assisted cooling for optimal performance.

Product Name/Title: 8x DVB-S/S2 to 8x DVB-T Transmodulator

Brand: Matchmaster

SKU: 14MM-TDX480

Alternatively Known As: DVB Transmodulator, DVB-S/S2 to DVB-T Converter, Satellite to Terrestrial Transmodulator

Technical Specifications
  • RF input frequency range: 950-2150 MHz.
  • LNB powering/control: 0/13/18 V & 22 kHz, 500 mA total, DiSEqC 1.0, EN50494, EN50607.
  • Level/impedance: 55-95 dBμV / 75 Ω.
  • Modulation: QPSK, 8PSK (DVB S/S2).
  • Symbol rate: 2 ÷ 45 Ms/s.
  • Return loss: ≥ 10 dB.
  • RF output frequency range: 170-230 MHz / 470-862 MHz.
  • Channel allocation: adjacent 4 + 4.
  • TS bit rate: < 31 Mbit/s.
  • Modulation: QPSK, QAM16, QAM64.
  • Channel bandwidth: 7 MHz / 8 MHz.
  • Guard interval: 1/4, 1/8, 1/16, 1/32.
  • Code rate: 1/2, 2/3, 3/4, 5/6, 7/8.
  • Transmission mode: 2K.
  • Total output level adjustment: 0 ÷ -15.0 dB by 1 dB step.
  • Management port: standard IEE802.3 10/100 Base T.
  • Current consumption: 12 V 1.1 A.
  • Operating temperature range: 0° ÷ +45°C.
  • Dimensions (H x L x W): 112mm x 485mm x 198mm
  • Weight: 0.9 kg
Key Features
  • Integrated 2x8 Multiswitch for 8 x DVB-S/S2 inputs to 8 x DVB-T outputs.
  • Pooling technology to send any input service to any output.
  • Web control with SNMP monitoring for ease of setup.
  • Loop through distribution for input and output connections.
  • Service filtering with PCR re-stamping and PSI/SI regeneration.
  • DVB-T output with MER >35dB.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and setup.
Applications
  • Broadcasting: Suitable for various broadcasting environments including cable and satellite systems.
  • Headend Equipment: Ideal for use in headend setups for signal processing.
Environmental Benefits
  • Efficient signal processing reduces energy consumption in broadcasting systems.
Warranty Information

Standard warranty information not provided.

Available Now

The 8x DVB-S/S2 to 8x DVB-T Transmodulator is available now for immediate purchase. Ideal for broadcasting and headend equipment applications.

Brochure (14mm-tdx480_brochure.pdf, 189 Kb) [Download]

Manual (14mm-tdx480_manual.pdf, 7,641 Kb) [Download]

Full Product Catalogue (full-product-catalogue.pdf, 25,988 Kb) [Download]
