Masthead Amplifier VHF/UHF 24dB | 4G/5G Filter | Power Supply Included by Matchmaster

SKU: 10MM-J24BF-4GP
$135.90 List price: $164.50
+
Masthead amplifier with 24dB gain and 4G/5G filter—ideal for enhancing VHF/UHF signal reception. Built for residential and commercial use, with included power supply for easy installation.

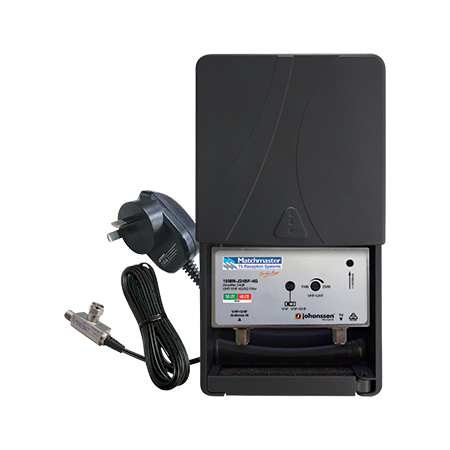

Product Name/Title: Masthead Amplifier VHF/UHF 24dB with 4G/5G Filter and Power Supply

Brand: Matchmaster

SKU: 10MM-J24BF-4GP

Alternatively Known As: VHF/UHF Masthead Amplifier, 4G/5G Filtered TV Signal Amplifier, Low Noise Masthead Amplifier

Technical Specifications
  • Frequency Range: VHF 174-230MHz, UHF 520-694MHz
  • Maximum Gain: 24dB
  • Gain Control: 14dB
  • Input Voltage: 14V DC
  • Noise Figure: 3.5dB
  • Maximum Input: 35dBµV
  • Maximum Output: 105dBµV
  • Dimensions (H x L x W): 60mm x 40mm x 120mm
  • Weight: 0.3 kg
Key Features
  • 24dB gain combination low noise amplifier with 15dB gain adjustment
  • Built-in 4G/5G LTE 694MHz low pass filter to eliminate unwanted frequencies
  • Selectable VHF only or combined VHF/UHF input

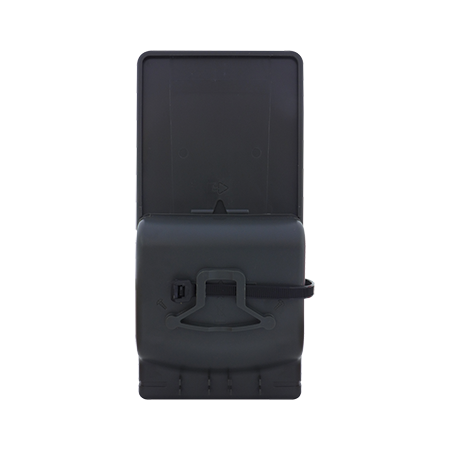

  • U/V stabilised weatherproof housing with cable tie
  • Wide range DC voltage operation (5-24V DC)
  • Includes 14V DC power supply
Professional Installation Requirements
  • Professional installation by a qualified technician or electrician is recommended to ensure optimal performance and compliance with electrical standards.
Applications
  • Residential: Enhance TV signal reception for homes
  • Commercial: Improve signal quality in offices and commercial buildings
  • Outdoor: Suitable for antenna installations requiring weatherproof amplification
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Improves signal quality reducing the need for multiple devices and lowering energy consumption
  • Weatherproof design extends product lifespan, reducing waste
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Matchmaster Masthead Amplifier VHF/UHF 24dB with 4G/5G Filter and Power Supply is available now for immediate purchase. Ideal for residential and commercial antenna signal enhancement.

Brochure (10mm-j24bf-4gp_brochure.pdf, 927 Kb) [Download]

Manual (10mm-j24bf-4gp_manual.pdf, 56 Kb) [Download]
