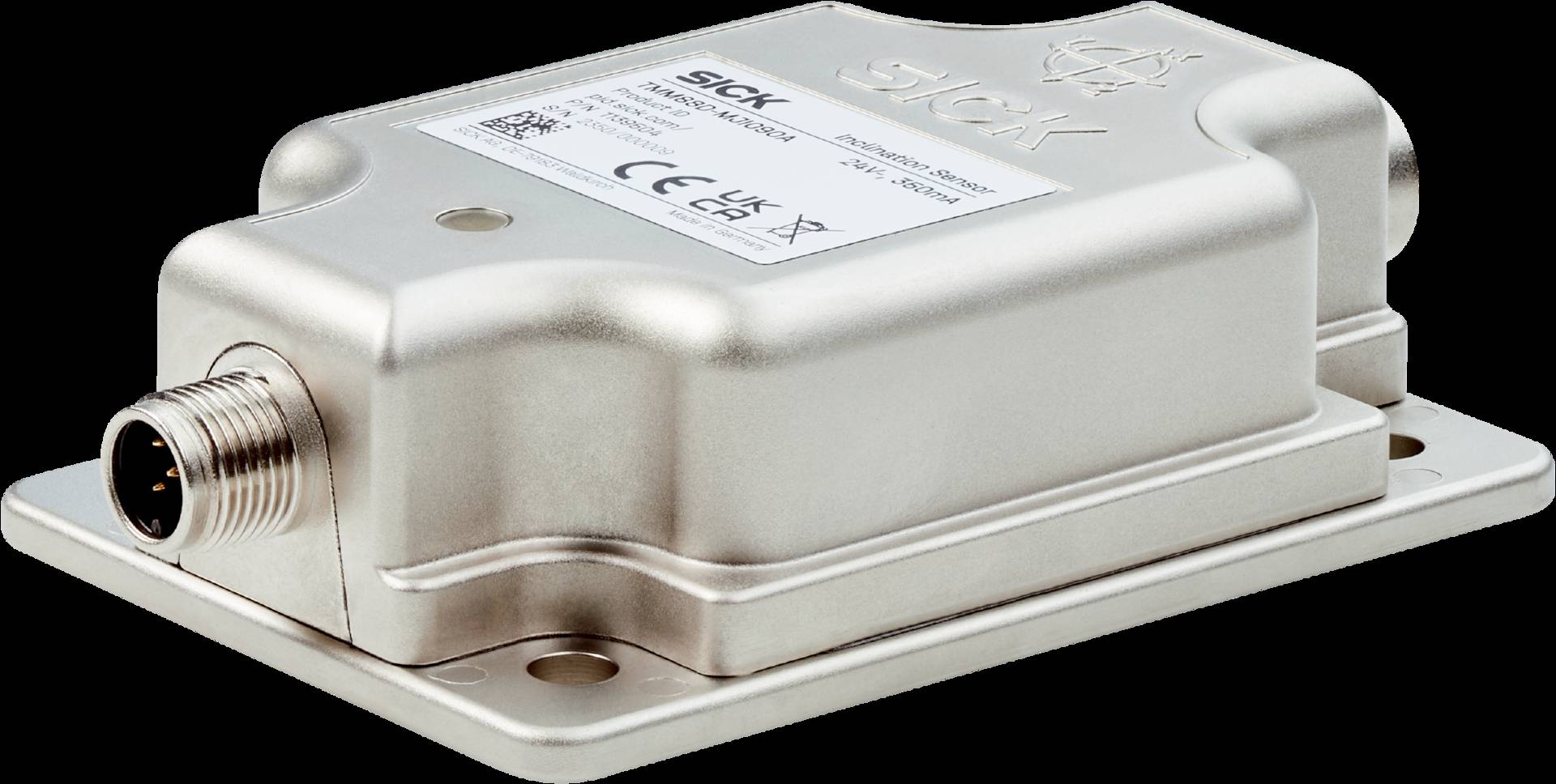

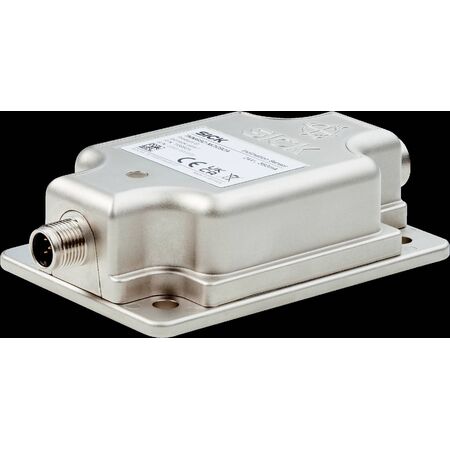

Dynamic Inclination Sensor TMS/TMM88 | High Precision | IP67/IP69 Rated | by SICK

BRAND: SICK
SKU: 1139503
$2,192.20 List price: $2,755.40
+
The TMS/TMM88 Dynamic inclination sensor offers high precision with a measurement accuracy of up to 0.1° for dynamic movements. Designed for industrial automation and motion control systems, this rugged sensor features a shock resistance of 100 g and is IP67/IP69 rated, making it ideal for harsh environments. With customizable settings and dual communication interfaces (CANopen, SAE J1939), it adapts seamlessly to various applications.

Product Name/Title: Dynamic Inclination Sensor TMS/TMM88 | High Precision | IP67/IP69 Rated | by SICK

Brand: SICK

SKU: 1139503

Alternatively Known As: Dynamic inclination sensor, MEMS inclination sensor, six-axis IMU sensor, industrial inclination sensor

Technical Specifications
  • Measurement principle: static and dynamic
  • Number of axis: 1
  • Communication interface: SAE J1939, CANopen
  • Housing material: die-cast zinc
  • Connection: male and female connectors
  • Shock resistance: 100 g
  • Enclosure rating: IP67/IP69
  • Dimensions (H x L x W): 50mm x 100mm x 50mm
  • Weight: 0.5 kg
Key Features
  • Single-axis (360°) and two-axis (+/-90°) inclination sensors based on a six-axis IMU
  • Adaptive intelligent sensor fusion filter for high precision
  • High accuracy up to 0.1° for dynamic movements
  • Interfaces: CANopen, SAE J1939
  • Customizable settings for flexible application adaptation
  • Shock resistance up to 100 g
  • Rugged design with enclosure rating IP67/69
Professional Installation Requirements
  • Professional installation by qualified personnel is recommended to ensure proper configuration and reliable operation.
Applications
  • Dynamic inclination measurement in industrial automation
  • Motion control systems requiring high precision
  • Harsh environment applications needing rugged sensors
Standards & Compliance
  • Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Durable design reduces replacement frequency and waste
  • High precision reduces energy waste in control systems
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.

Available Now

The SICK TMS/TMM88 Dynamic inclination sensors are available for immediate purchase, ideal for industrial motion control and dynamic measurement applications.
