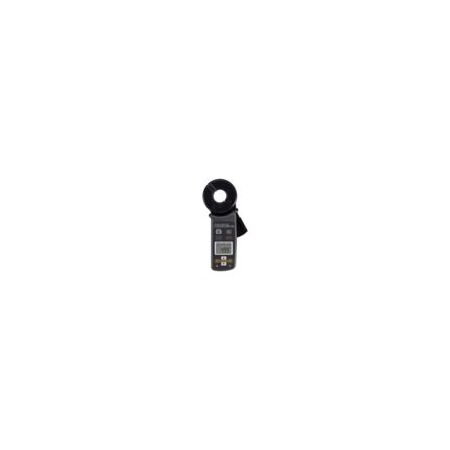

Earth Clamp Tester | True RMS Detection | LCD Backlight | 30A Max by Eaton
Earth clamp tester with True RMS detection and LCD backlight—ideal for electrical safety testing and maintenance. Built for professionals, it measures earth resistance up to 1500 Ω and AC current up to 30 A, ensuring accurate and reliable results.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Earth Clamp Tester | True RMS Detection | LCD Backlight | 30A Max by Eaton
Brand: Eaton
SKU: 042000029D
Alternatively Known As: Earth Resistance Clamp Meter, Earth Ground Tester, Clamp Earth Tester
Technical Specifications
- Display type: LCD with backlight
- Detection Method: True RMS
- Resistance Measurement Max: 1500 Ω
- Test Ranges: 20/200/1500 Ω
- AC Current Measurement Max: 30 A
- Measurement Capabilities: Earth Resistance
- Safety Category Rating: CAT IV 300V
- Earth resistance test method: Clamp
- Certifications: IEC 61010-1, IEC 61326, IEC 61010-2-032
- Dimensions (H x L x W): 246mm x 120mm x 54mm
- Weight: 0.78 kg
Key Features
- True RMS detection method for accurate measurements
- LCD display with backlight for easy reading
- Clamp type earth resistance test method
- Measurement capabilities include earth resistance and AC current
- Safety category rating CAT IV 300V
Professional Installation Requirements
- Professional use recommended; installation and testing should be performed by qualified electrical personnel.
Applications
- Electrical safety testing
- Earth resistance measurement in industrial and commercial electrical installations
- Maintenance and troubleshooting of grounding systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps ensure electrical safety and reduce risk of electrical faults that can cause environmental hazards
- Durable design reduces waste through long product life
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's official warranty policy for details.
Available Now
The Kyoritsu 4200 Earth Clamp Tester by Eaton is available now for immediate purchase. Ideal for electrical safety testing and maintenance in industrial and commercial environments.
