Earth Leakage Relay 0.03-10A | Time Delay | 50% LED by Hager
Earth leakage relay with 0.03-10A range and time delay—ideal for residential and commercial safety. Built for enhanced protection, with 50% LED indication and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

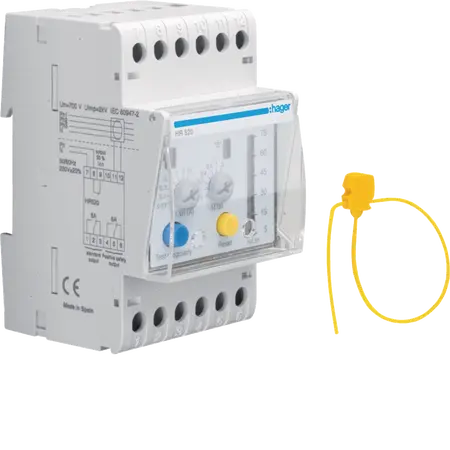

Product Name/Title: EARTH LEAKAGE RELAY 0.03-10A TIME DELAY 50% LED
Brand: Hager
SKU: HR520
Alternatively Known As: Earth Leakage Circuit Breaker, Residual Current Device, RCD
Technical Specifications
- Rated residual operating current: 30 mA to 10000 mA
- Maximum connection distance: 25 m and 50 m twisted pair
- Safety type: Residual current type A
- Dimensions (H x L x W): 80mm x 120mm x 100mm
- Weight: 0.5 kg
Key Features
- Rated residual operating current options: 30 mA, 100 mA, 300 mA, 500 mA, 1000 mA, 3000 mA, 10000 mA
- Allows overload of 30 kA/100 ms
- Includes earth leakage toroid for enhanced safety
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS and REACH compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager Earth Leakage Relay 0.03-10A Time Delay 50% LED is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
