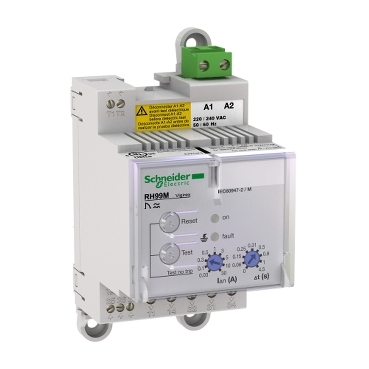

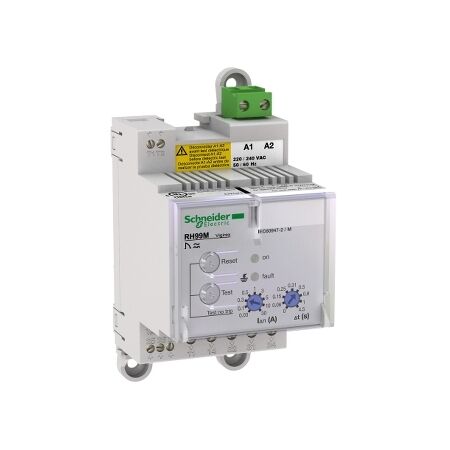

Earth Leakage Relay RH99M | Manual Reset | Adjustable Sensitivity 0.03A to 30A | DIN Rail Mount | @Pack of 1 | by Clipsal
The Earth Leakage Relay RH99M is designed for reliable electrical protection, featuring adjustable sensitivity from 0.03A to 30A and a manual reset function for enhanced safety. Ideal for industrial and commercial applications, this relay operates at 240V AC and includes LED indicators for status and fault detection, ensuring optimal performance in electrical panels and switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Earth Leakage Relay RH99M | Manual Reset | Adjustable Sensitivity 0.03A to 30A | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCH56173
Alternatively Known As: Earth Leakage Protection Relay, Residual Current Relay, Earth Fault Relay, RH99M Relay, Clipsal Earth Leakage Relay
Technical Specifications
- Earth leakage current sensitivity: 0.03A to 30A adjustable
- Time delay: 0 to 4.5 seconds adjustable
- Rated voltage: 240V AC
- Manual reset operation
- DIN rail mounting
- LED indicators for status and fault
- Operating temperature: -10°C to +55°C
- Dimensions (H x L x W): 80mm x 70mm x 45mm
- Weight: 0.25 kg
Key Features
- Manual reset function for enhanced safety
- Adjustable earth leakage sensitivity from 0.03A to 30A
- Time delay adjustable from 0 to 4.5 seconds
- Operates at 240V AC
- Compact DIN rail mount design
- LED status indicators for fault and operation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local wiring rules and standards.
Applications
- Industrial electrical panels
- Commercial switchboards
- Protection of electrical circuits against earth leakage faults
- Motor control centers
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents electrical fires and equipment damage by detecting earth leakage faults early.
- Enhances electrical safety, reducing risk of injury and property loss.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal RH99M Earth Leakage Relay with Manual Reset (SCH56173) is available for immediate purchase. Ideal for industrial and commercial electrical protection applications.
