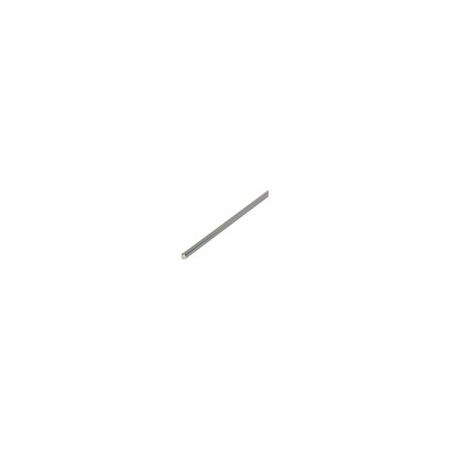

Eaton NZM Extension Shaft | 290 mm Length | 400 mm Mounting Depth | Corrosion Resistant by Eaton
Eaton NZM extension shaft with a customizable 290 mm length and a maximum mounting depth of 400 mm—ideal for electrical switchgear assemblies. Built for professional electricians, it meets stringent standards for corrosion resistance and thermal stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Eaton NZM Extension Shaft | 290 mm Length | 400 mm Mounting Depth | Corrosion Resistant by Eaton
Brand: Eaton
SKU: Y7-261232
Alternatively Known As: Eaton NZM Extension Shaft, NZM1/2 Operating Element Extension, Molded Case Circuit Breaker Extension Shaft
Technical Specifications
- Product Length/Depth: 290 mm
- Product Height: 12 mm
- Product Width: 12 mm
- Cross section height: 8 mm
- Cross section width: 8 mm
- Maximum mounting depth: 400 mm
- Fitted with: Extension shaft, 1 pc
- Compliances: UL/CSA IEC RoHS conform
- Meets product standard requirements for corrosion resistance, thermal stability, resistance to UV radiation, and mechanical function
- Dimensions (H x L x W): 12mm x 290mm x 12mm
- Weight: 0.126 kg
Key Features
- Extension shaft accessory for Eaton Moeller series NZM molded case circuit breakers
- Maximum mounting depth of 400 mm
- Length 290 mm, can be cut to desired length
- Cross section height and width of 8 mm
- Meets product standard requirements for corrosion resistance, thermal stability, and UV resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with switchgear.
Applications
- Used with NZM2(-4), PN2(-4), N(S)2(-4), NZM1(-4), PN1(-4), N(S)1(-4) molded case circuit breakers
- Suitable for electrical switchgear assemblies requiring extension shafts for operating elements
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports efficient electrical system assembly reducing waste by allowing customizable shaft length
- Complies with RoHS standards limiting hazardous substances
Warranty Information
Warranty terms as per Eaton standard product warranty policies.
Available Now
The Eaton NZM1/2-XV4 Extension Shaft is available for immediate purchase, ideal for electrical switchgear assembly and maintenance.
