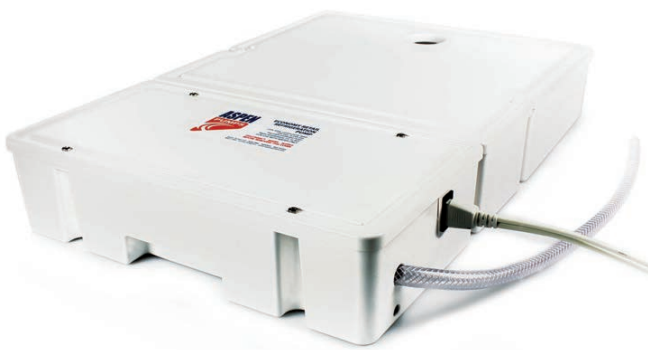

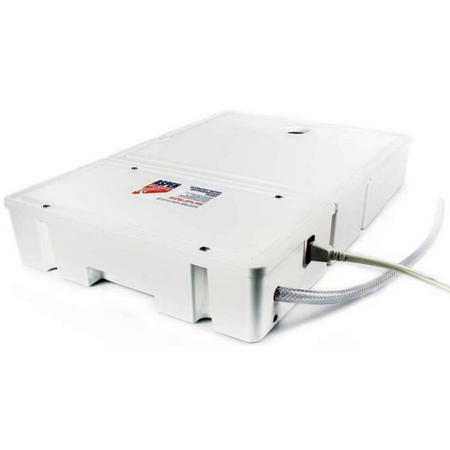

Economical Retail Refrigeration Pump ERRP | 225 L/h Max Flow Rate | IP24 Protection | by Aspen Pumps
The Economical Retail Refrigeration Pump ERRP is designed for efficient condensate removal in refrigeration units and cold store cabinets. With a high flow rate of 225 L/h and IP24 protection, it ensures reliable operation in supermarket refrigeration systems. Built for professional installation, this pump features thermal protection and a safety switch for enhanced safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Economical Retail Refrigeration Pump ERRP | 225 L/h Max Flow Rate | IP24 Protection | by Aspen Pumps
Brand: Aspen Pumps
SKU: FP2318
Alternatively Known As: Economical Retail Refrigeration Pump, Condensate Removal Pump, Supermarket Refrigeration Pump
Technical Specifications
- Max flow rate: 225 L/h @ 0 head
- Max recommended head: 35 m
- Tank capacity: 11 L
- Noise level: 60 dB(A) @ 1 m
- Power supply: 230 VAC, 0.2A, 50/60Hz
- Rated non-continuous operation
- Max water temperature: 40°C / 104°F
- Inlet/outlet sizes: 50 mm inlet, 10 mm outlet
- IP Protection: IP24
- Safety switch: 3.0A Normally closed
- Thermal protection included
- Dimensions (H x L x W): 200mm x 250mm x 150mm
- Weight: 1.5 kg
Key Features
- High flow rate
- Easy to clean
- Filter to catch debris
- Plug & play design
- Thermal protection
- Safety switch 3.0A Normally closed
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper electrical connection and pump setup.
Applications
- Refrigeration units
- Cold store cabinets
- Supermarket refrigeration systems
Standards & Compliance
- Complies with AS/NZS 60335 for safety of electrical appliances
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Efficient water removal reduces risk of water damage and energy waste in refrigeration systems
- Low power consumption with 230 VAC, 0.2A operation
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Aspen ERRP Top Inlet Economical Retail Refrigeration Pump is available now for immediate purchase. Ideal for refrigeration and cold store applications in supermarkets and retail environments.
