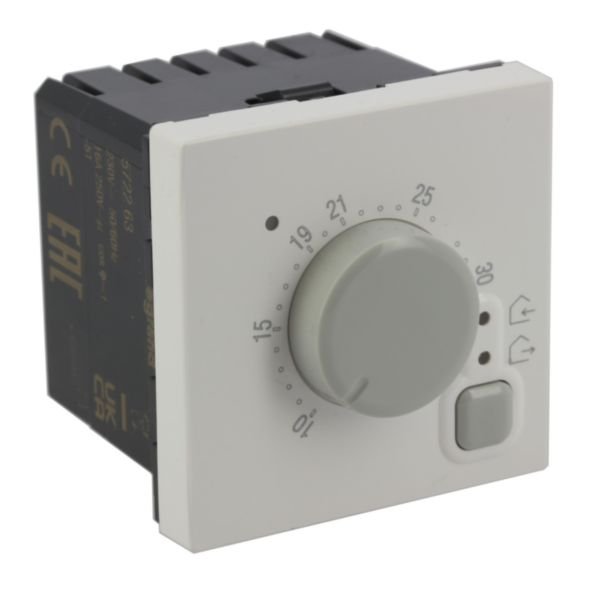

Electric Floor Heating Thermostat | 10-30°C Adjustable Range | IP30 Rated | Flush-Mounted | @EA of 1 | by Legrand
The Electric Floor Heating Thermostat is designed for efficient temperature control in electric floor heating systems, featuring an adjustable range from 10°C to 30°C. Ideal for residential and commercial applications, this flush-mounted thermostat ensures a clean finish while optimizing energy consumption. With a maximum contact load of 8A and IP30 protection, it’s perfect for reliable heating and cooling regulation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electric Floor Heating Thermostat | 10-30°C Adjustable Range | IP30 Rated | Flush-Mounted | @EA of 1 | by Legrand
Brand: Legrand
SKU: 572263
Alternatively Known As: Electric floor heating thermostat, floor heating temperature controller, wall thermostat for floor heating
Technical Specifications
- Power Supply: 230 V AC
- Connection: 3-/4-wire
- Measuring Range: 10-30 °C
- Operation: Turn control
- Number of Heater Outputs: 1
- Number of Cooler Outputs: 1
- Differential Value: 2-2 K
- Max Contact Voltage: 250 V
- Max Contact Load: 8 A
- Degree of Protection: IP30
- Mounting Method: Flush-mounted
- Number of Modules: 2
- Colour: White
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Compatible with Amazon Alexa: No
- IFTTT Support: No
- Dimensions (H x L x W): 45mm x 47mm x 45mm
- Weight: 0.1 kg
Key Features
- Thermostat designed for electric floor heating systems
- Adjustable temperature range from 10 °C to 60 °C
- Flush-mounted installation for a clean finish
- Change-over contact (NO/NC) with max contact load of 8 A
- 16 A - 230 V~ power rating
- Equipped with one potential free N/O contact and LED indicator
- Suitable for both heating and cooling applications
- IP30 degree of protection
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety.
Applications
- Electric floor heating control in residential buildings
- Heating system regulation in commercial spaces
- Integration in home automation for temperature management
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps optimize energy consumption by maintaining desired floor temperature efficiently
- Supports sustainable heating management reducing unnecessary energy use
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Arteor Thermostat for Electric Floor Heating - 2 Modules - White is available for immediate purchase, ideal for precise temperature control in electric floor heating systems.
