Electric Vehicle Charging Station 11kW | 3P+N | 7m Cable | IP55 Rated by Clipsal

BRAND: Clipsal

SKU: SCHEVH5A11N2C7

$1,635.10 List price: $2,037.50

+ −

30 Days Return Delivery Options

Electric vehicle charging station with 11kW power and 3P+N configuration—ideal for residential and commercial use. Built for convenience with a 7m attached cable and IP55 protection, ensuring reliable and safe charging.

Description
Attachments

Product Name/Title: Schneider Charge, Charging station, 3P+N, attached cable 7m, 11kW, 16A

Brand: Clipsal

SKU: EVH5A11N2C7

Alternatively Known As: EV Charger, Electric Vehicle Charging Station, Schneider EV Charger

Technical Specifications

Nominal output power: 11 kW, 16 A
Socket outlet type: cable T2
Rated supply voltage: 400 V AC 50...60 Hz +/- 10 %
Communication network type: Wi-Fi, wireless, Ethernet
Protection type: earth-leakage protection
IK10 impact protection rating
Operating temperature: -35...55 °C
Relative humidity: 5...95 %
Dimensions (H x L x W): 352mm x 117mm x 244mm
Weight: 5.1 kg

Key Features

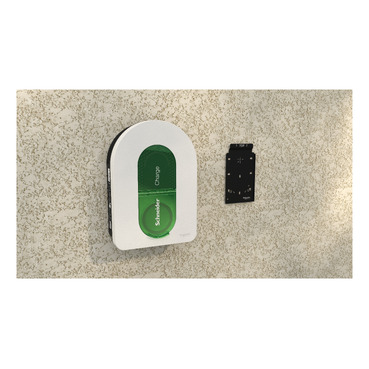

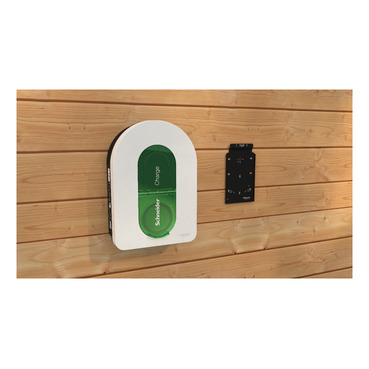

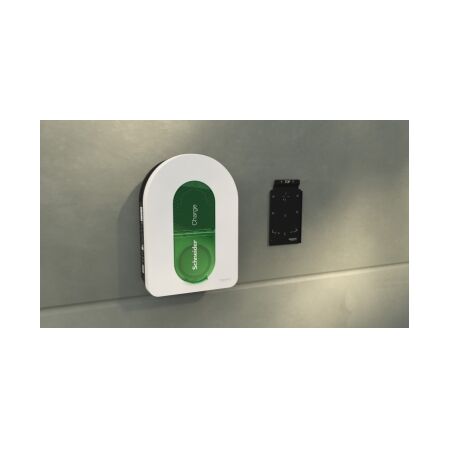

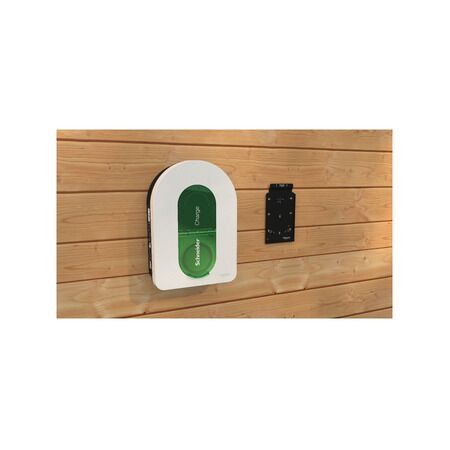

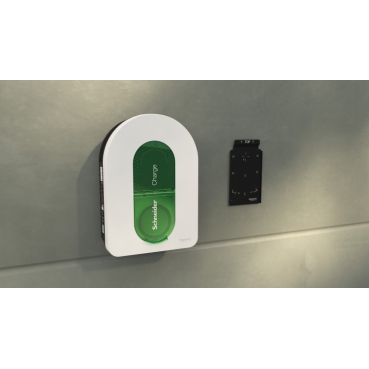

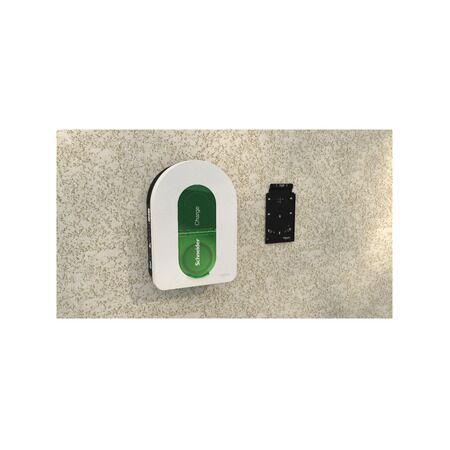

Wall-mounted design for easy installation.

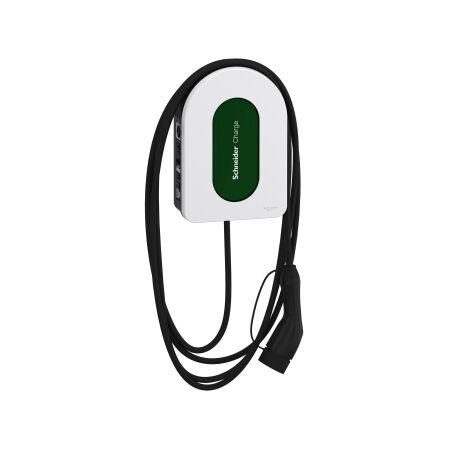

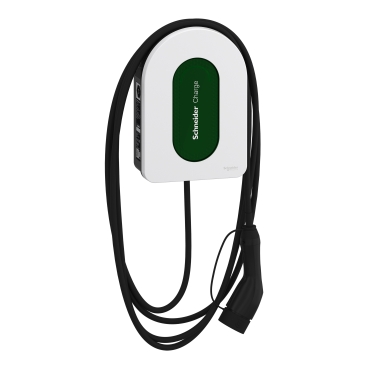

Attached 7m cable for convenient charging.
IP55 rated for protection against dust and water.
OCPP 1.6 protocol for connection to Schneider Electric Wiser app.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Residential: Home charging for electric vehicles
Commercial: Public charging stations, fleet charging

Standards & Compliance

Complies with EN 61851 and IEC 61851-1 standards.

Environmental Benefits

Green Premium product status indicating environmentally friendly design.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Schneider Charge Charging Station is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging solutions.

EVH5A11N2C7 (EVH5A11N2C7, 220 Kb) [Download]
