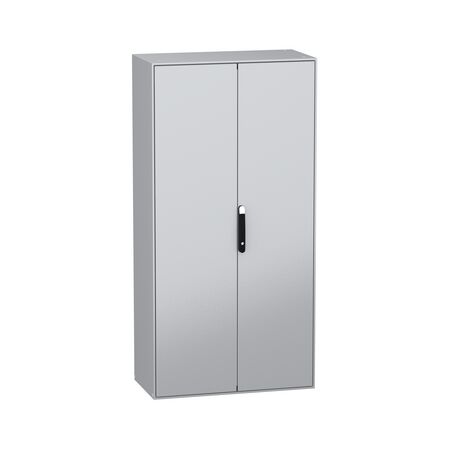

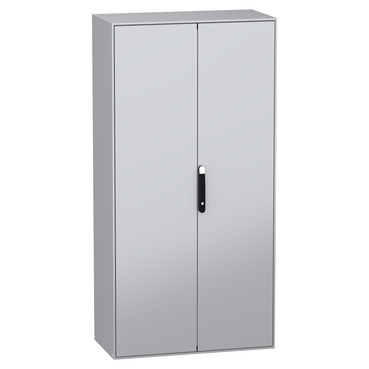

Electrical Switchboard Enclosure | IP66 Rated | Double Door Design | Powder-Coated Steel | @Pack of 1 | by Clipsal
The Electrical Switchboard Enclosure with IP66 rating and double door design is perfect for industrial and commercial applications. Built from robust powder-coated steel, it includes a mounting plate for easy installation and offers excellent protection against dust and water ingress. Ideal for housing electrical components in factories and warehouses, this enclosure ensures durability and safety in both indoor and outdoor settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electrical Switchboard Enclosure | IP66 Rated | Double Door Design | Powder-Coated Steel | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHNSYSM2010502DP
Alternatively Known As: Electrical switchboard enclosure, Clipsal metal enclosure, Double door switchboard cabinet, Industrial control panel box, Clipsal SCHNSYSM2010502DP
Technical Specifications
- Material: Powder-coated steel
- Ingress Protection: IP66
- Door Type: Double door
- Mounting Plate: Included
- Locking System: 3-point locking mechanism
- Finish: RAL7035 light grey powder coat
- Cable Entry: Top and bottom gland plates
- Suitable for indoor and outdoor use
- Dimensions (H x L x W): 2000mm x 500mm x 1000mm
- Weight: 120 kg
Key Features
- Robust steel construction for enhanced durability
- Supplied with mounting plate for easy equipment installation
- Double door design for convenient access
- IP66 rated for dust and water ingress protection
- Powder-coated finish for corrosion resistance
- Spacious internal layout for flexible component arrangement
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Industrial electrical switchboard enclosures
- Commercial power distribution panels
- Control panel housing for factories and warehouses
- Suitable for indoor and outdoor electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 61439 – Low-voltage switchgear and controlgear assemblies
Environmental Benefits
- Durable steel construction extends product lifespan, reducing replacement frequency
- Powder-coated finish is low-VOC and environmentally safer than traditional paints
- IP66 rating helps protect sensitive electrical equipment, reducing risk of environmental contamination
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
The Clipsal SM w/mount plate 2D 2000x1000x500 enclosure (SCHNSYSM2010502DP) is available for immediate purchase. Ideal for industrial and commercial electrical switchboard and control panel applications.
