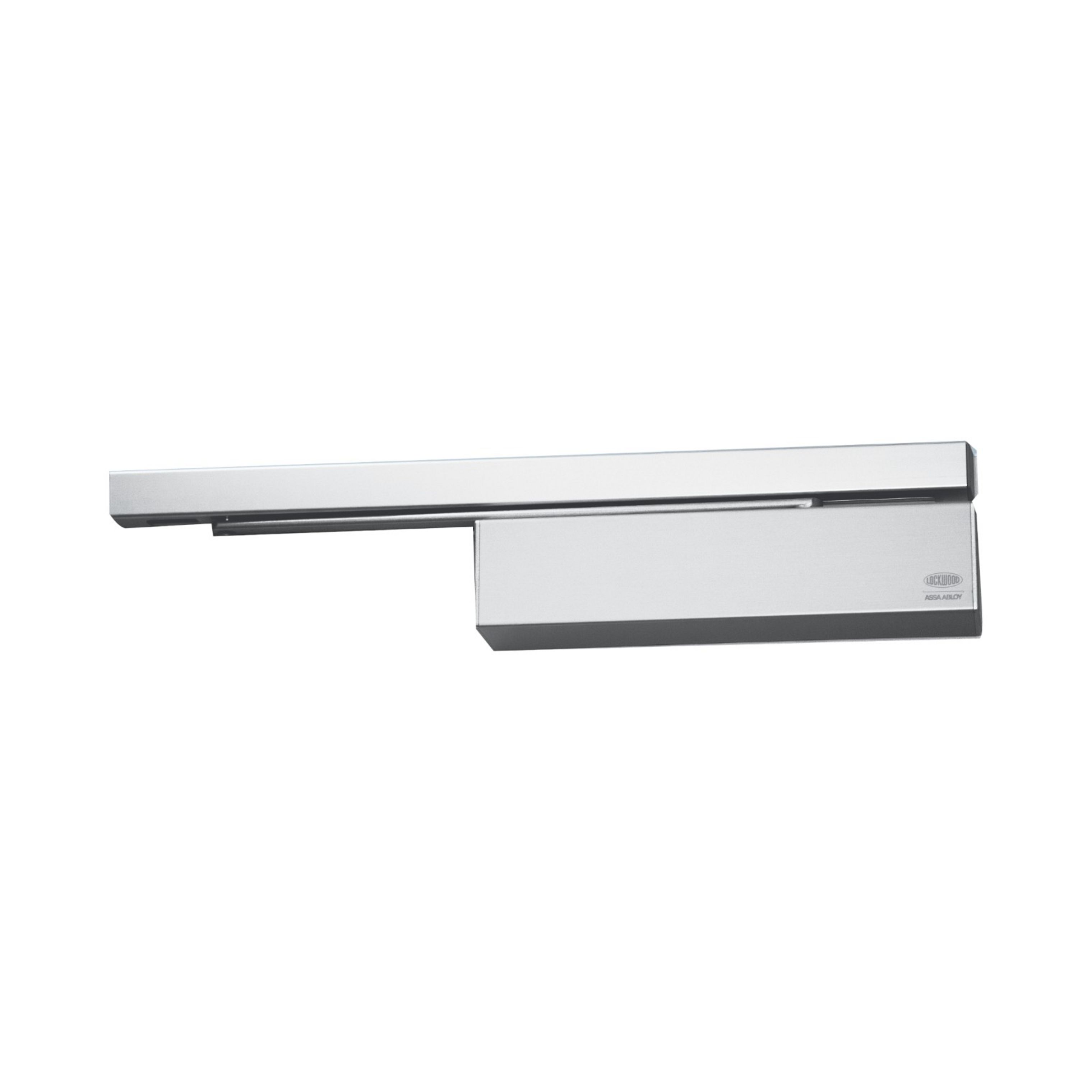

Electromechanical Single Door Closing System | Fire Rated 4 Hours | Adjustable Hold Open Angle | Silver | by Lockwood
The Electromechanical Single Door Closing System is designed for fire doors, featuring a hold open device with a sliding arm and fire rating of up to 4 hours. Ideal for hotels and office buildings, this compact system ensures safety and compliance with AS1905.1:2005 standards, while its adjustable hold-open angle from 70° to 130° provides flexibility for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Electromechanical Single Door Closing System | Fire Rated 4 Hours | Adjustable Hold Open Angle | Silver | by Lockwood
Brand: Lockwood
SKU: 2616EMCSIL
Alternatively Known As: Electromechanical Door Closer, Fire Door Hold Open Device, Single Door Closing System
Technical Specifications
- Hold open device with sliding arm
- Fire tested up to 4 hours on fire door assemblies per AS1905.1:2005
- Maximum door width: 1400mm
- Maximum opening angle: 130°
- Adjustable hold-open angle: 70° to 130°
- Power consumption: 60 mA at 24VDC
- Dimensions (H x L x W): 150mm x 200mm x 300mm
- Weight: 5 kg
Key Features
- Small single door electromechanical hold open device system with sliding arm
- Compact modern design suitable for single door installations
- Fire rated up to 4 hours on fire door assemblies according to AS1905.1:2005
- Maximum door width 1400mm
- Maximum opening angle 130°
- Adjustable hold-open angle from 70° to 130°
- Power consumption 1 x 60 mA (24VDC)
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is required to ensure compliance with fire safety standards and proper operation.
Applications
- Hotels
- Office buildings
- Fire doors requiring hold open function
Standards & Compliance
- Complies with AS1905.1:2005 - Fire Resistant Doorsets
Environmental Benefits
- Helps prevent the spread of smoke and flames, enhancing building safety and reducing fire damage
- Energy efficient with low power consumption (60 mA at 24VDC)
Warranty Information
5 years warranty.
Available Now
The Lockwood 2616 Series Electromechanical Single Door Closing System Silver is available now for immediate purchase. Ideal for fire door applications in commercial and hospitality environments.
