Home/Electrical/Switchboards/Distribution Boards/Hager Elite Distribution Board 400A | 42 Phases | IP66 Rated | Light Grey by Hager

Trade Discount 22%

DB, elite, 400A, 6+36Pole, 400A ISO-WH.1200x600x250mm

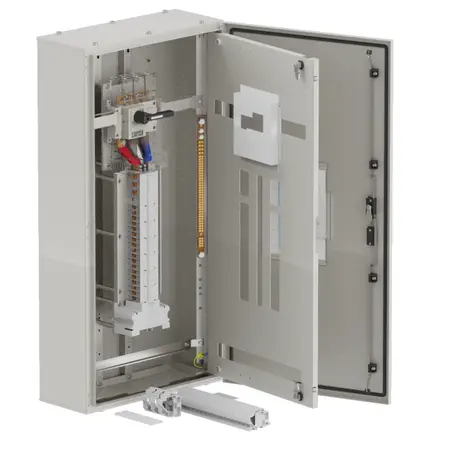

Hager Elite Distribution Board 400A | 42 Phases | IP66 Rated | Light Grey by Hager

BRAND: :hager

SKU: JPE0636S40TW

$3,210.80 List price: $4,105.60

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Elite distribution board with 42 accessible phases and IP66 rating—ideal for commercial and residential electrical distribution. Built for high-capacity use, with 375A rated current and secure 3-point lever key lock.

Description
Attachments

Product Name/Title: DB, elite, 400A, 6+36Pole, 400A ISO-WH.1200x600x250mm

Brand: Hager

SKU: JPE0636S40TW

Alternatively Known As: Hager 400A DB, Hager Elite Panelboard, Hager Distribution Board 400A

Technical Specifications

Rated current: 375 A
Number of accessible phases: 42
Number of modules: 38
Material: Steel
Colour: Light grey (RAL 7035)
Ingress Protection (IP) class: IP66
Impact resistance: IK05
Locking type: 3-point lever, Key lock
Dimensions (H x L x W): 1200mm x 250mm x 600mm
Weight: 50 kg

Key Features

42 accessible phases for extensive electrical distribution.
IP66 rated for protection against dust and water ingress.
375A rated current with a 3-point lever key lock for security.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Commercial: Large buildings, industrial facilities
Residential: High-capacity homes requiring robust electrical distribution

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Designed to improve environmental performance by reducing carbon footprint.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Hager Elite 400A Distribution Board is available now for immediate purchase. Ideal for commercial and residential applications requiring high-capacity electrical distribution.

JPE0636S40TW (JPE0636S40TW, 185 Kb) [Download]

reach_declaration_JPE0636S40TW1.pdf (reach_declaration_JPE0636S40TW1.pdf, 103 Kb) [Download]

(6LE009746B_Performa_Elite-400_EN_02-400-2024_Leaflet_web.pdf, 15,769 Kb) [Download]

(23AU_BRO_PERFORMA.pdf, 11,746 Kb) [Download]
