EMC Input Filter 3-Phase Supply | 25 A | IP20/IP41 Rated by Clipsal
EMC input filter with 3-phase supply and 25 A rated current—ideal for industrial applications. Built for reliable EMC filtering, with IP20/IP41 protection and compatibility with Altivar and Lexium motor models.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

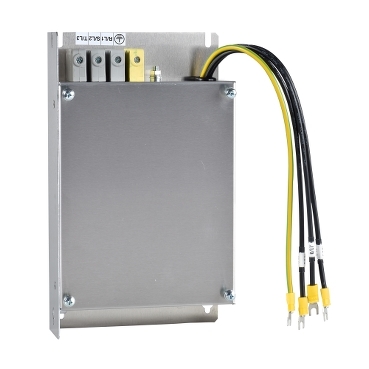

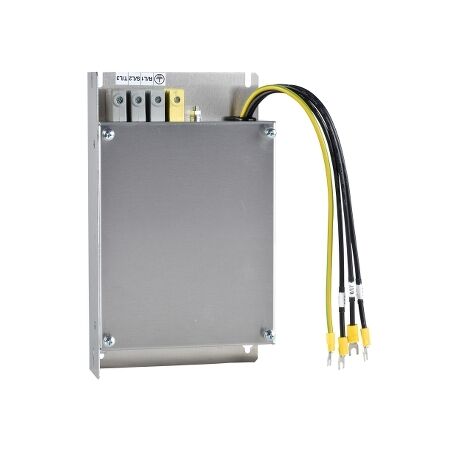

Product Name/Title: Altivar 31, Additionnal EMC input filter, 3-phase supply, 25 A
Brand: Clipsal
SKU: VW3A31406
Alternatively Known As: EMC input filter, 3-phase input filter, Altivar 31 filter
Technical Specifications
- Rated current: 25 A
- IP degree of protection: IP20/IP41
- Operating temperature: -10 to 50 °C
- Storage temperature: -25 to 70 °C
- Relative humidity: 0 to 93%
- Electrical connection: terminal 10 mm² AWG 6
- Tightening torque: 1.8 N.m
- Earth leakage current: 35 mA at 50 Hz
- Network rated voltage: 380...500 V / 200...240 V
- Vibration resistance: 1 gn (f= 13-150 Hz)
- Shock resistance: 15 gn for 11 ms
- Dimensions (H x L x W): 58mm x 282mm x 235mm
- Weight: 1.65 kg
Key Features
- Designed for 3-phase supply with a rated current of 25 A.
- Compatible with multiple Altivar and Lexium motor models.
- IP20 and IP41 rated for protection.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Compatible with various servo drives and variable speed drives.
Standards & Compliance
- Complies with IEC 61800-3 standards.
Environmental Benefits
- Complies with IEC 61800-3 standards for safety and performance.
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The Clipsal Altivar 31 EMC Input Filter is available now for immediate purchase. Ideal for industrial applications requiring reliable EMC filtering.
