EMC Shielded Nickel Plated Brass Gland M16 | IP68 Waterproof | 5-9mm Cable Diameter | Integrated Strain Relief by Cabac

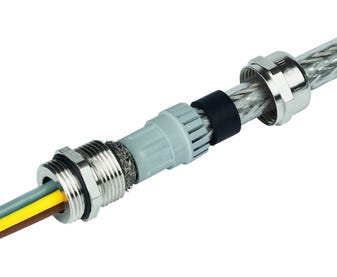

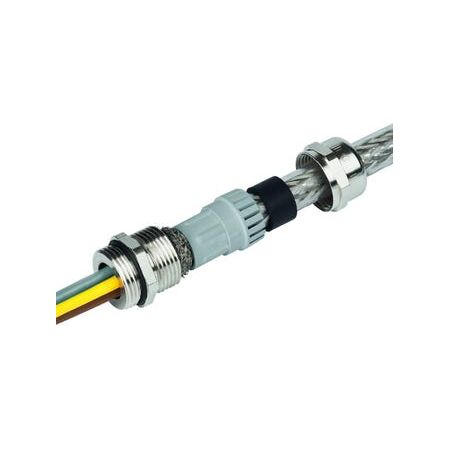

The Cabac EMC Shielded Nickel Plated Brass Gland M16 is designed for effective termination of mesh or foil shielded EMC cables, featuring a corrosion resistant body, IP68 waterproof rating, and integrated strain relief.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cabac EMC Shielded Nickel Plated Brass Gland M16 Cable OD 5-9mm
Brand: Cabac
SKU: GU16EMC/L
Alternatively Known As: EMC Cable Gland M16, Shielded Cable Gland, Nickel Plated Brass EMC Gland, IP68 EMC Gland, EMC Strain Relief Gland
Technical Specifications
- Material: Nickel plated brass body with polyamide 6 V-2 insert and NBR rubber seal
- Cable Seal Type: Camera-shutter type
- Waterproof Rating: IP68 (5 bar)
- Cable Diameter Range: 5mm to 9mm
- Mounting Diameter: 16mm
- Thread Length: 10mm
- Width Across Flats: 17mm
- Lock Nut: Sold separately (LNM16EMC) with NBR o-ring
- Integrated strain relief and cable shield connection
- Dimensions (H x L x W): n/a mm x n/a mm x n/a mm
- Weight: 0.05 kg
Key Features
- Corrosion resistant nickel plated brass body
- Polyamide 6 V-2 insert with NBR rubber seal
- Camera-shutter type cable seal achieving IP68 (5 bar) waterproof rating
- Supports wide cable diameter range from 5mm to 9mm
- Integrated strain relief capability
- Includes cable shield connection
- Lock nut sold separately with NBR o-ring
Professional Installation Requirements
- Installation must be performed by a qualified electrician ensuring gland is terminated into a metal enclosure with proper cable shield termination for EMC compliance.
Applications
- Termination of mesh or foil shielded EMC cables
- Use in metal enclosures or terminal boxes for EMC cable shielding
- Suitable for industrial and commercial electrical installations requiring EMC compliance
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable corrosion resistant materials extend product lifespan reducing waste
- Supports electromagnetic compatibility reducing electromagnetic interference pollution
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac warranty terms for details.
Available Now
The Cabac EMC Shielded Nickel Plated Brass Gland M16 Cable OD 5-9mm is available now for immediate purchase. Ideal for industrial and commercial electrical installations requiring EMC cable termination.
