Trade Discount 25%

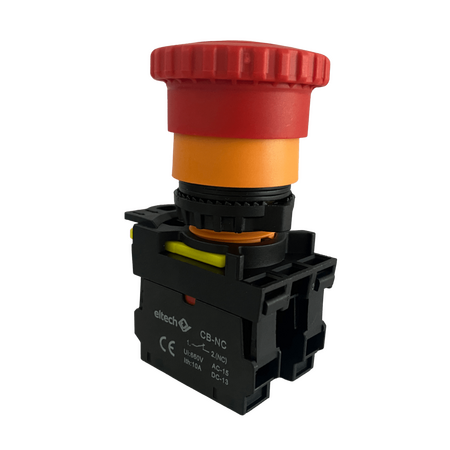

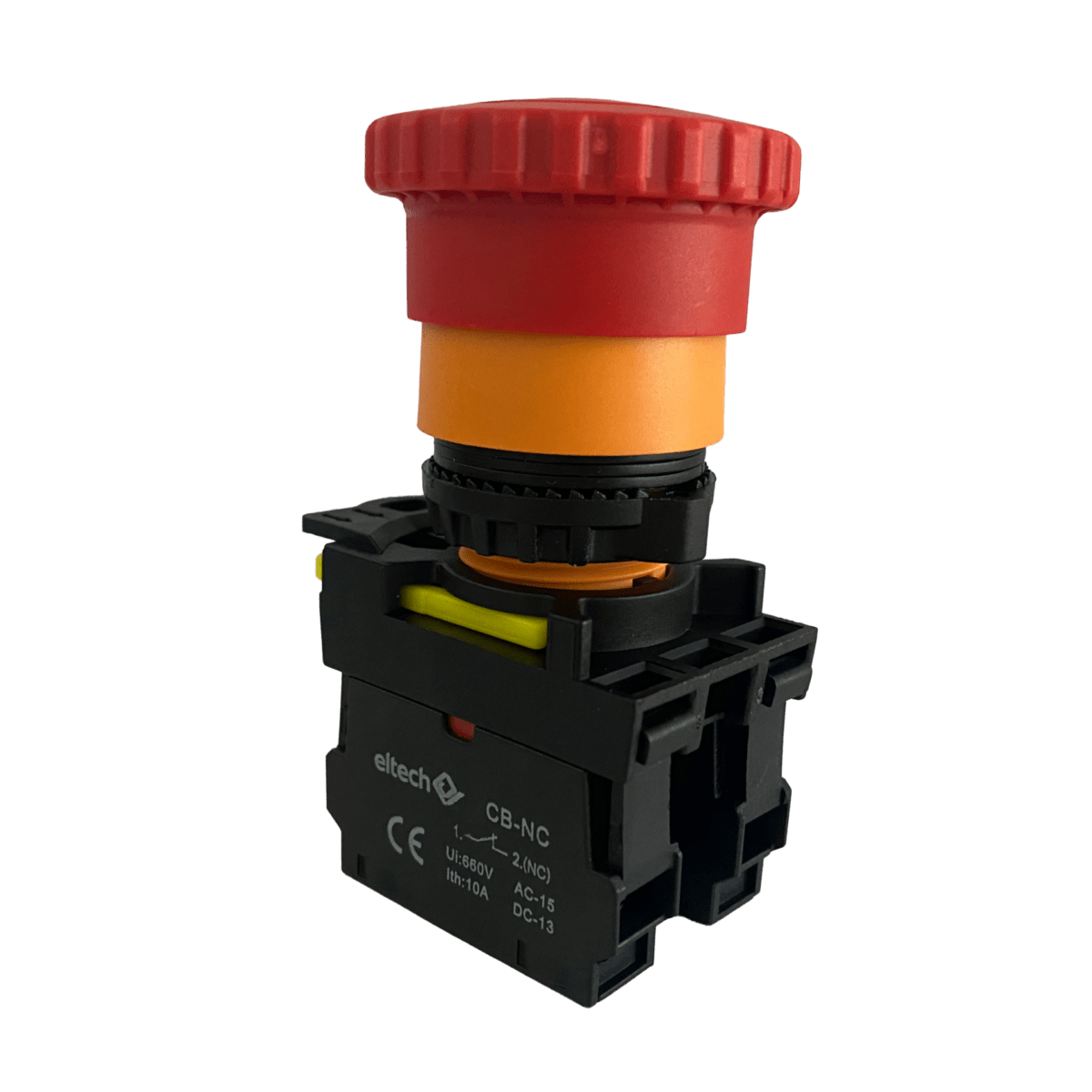

Emergency Stop Button 40mm Mushroom Twist 1NO+1NC Plastic Eltech
Eltech emergency stop pushbutton features 40mm mushroom plastic head, twist release and 1NO+1NC contacts in plastic enclosure. Ideal for machine safety control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Eltech E‑Stop Button 40 mm Twist Reset
Technical Specifications
- Head Diameter: 40 mm
- Operator: Mushroom head, twist‑release (push‑to‑stop, twist‑to‑reset)
- Contacts: 1NO (normally open) + 1NC (normally closed)
- Rated Insulation Voltage: 600 V
- Thermal Current Rating: 10 A
- Switch Rating AC‑15: 380 V/250 V, Ie = 4.5 A
- Switch Rating DC‑13: 220 V/110 V, Ie = 0.6 A
- Dimensions (H x L x W): 45mm x 45mm x 45mm
- Weight: 0.12 kg
Key Features
- Large 40 mm mushroom head for easy activation in emergencies
- Twist‑release reset prevents accidental reactivation
- Dual‑contact configuration (1NO + 1NC) for versatile safety circuit integration
- Robust 600 V insulation rating and 10 A capacity
- Suitable for industrial automation and machinery safety control
Applications
- Emergency stop control on machinery and conveyor systems
- Integration into safety circuits requiring both NO and NC contacts
- Industrial control panels with push‑to‑stop, twist‑to‑reset safety functionality
Standards & Compliance
- Likely compliant with AS/NZS 60947.5.1 (control circuit devices and switching elements)
Environmental Benefits
- Plastic components are lightweight and recyclable
- Extended product durability reduces waste through fewer replacements
Warranty Information
Eltech Australia provides a 7‑year warranty when installed by a licensed electrician according to manufacturer’s instructions, with proof of purchase. Warranty invalid if modified or not returned for assessment as per terms.
Available Now
Available through authorised Australian distributors.
