EN2-2EX1 | Integration modules and adapters

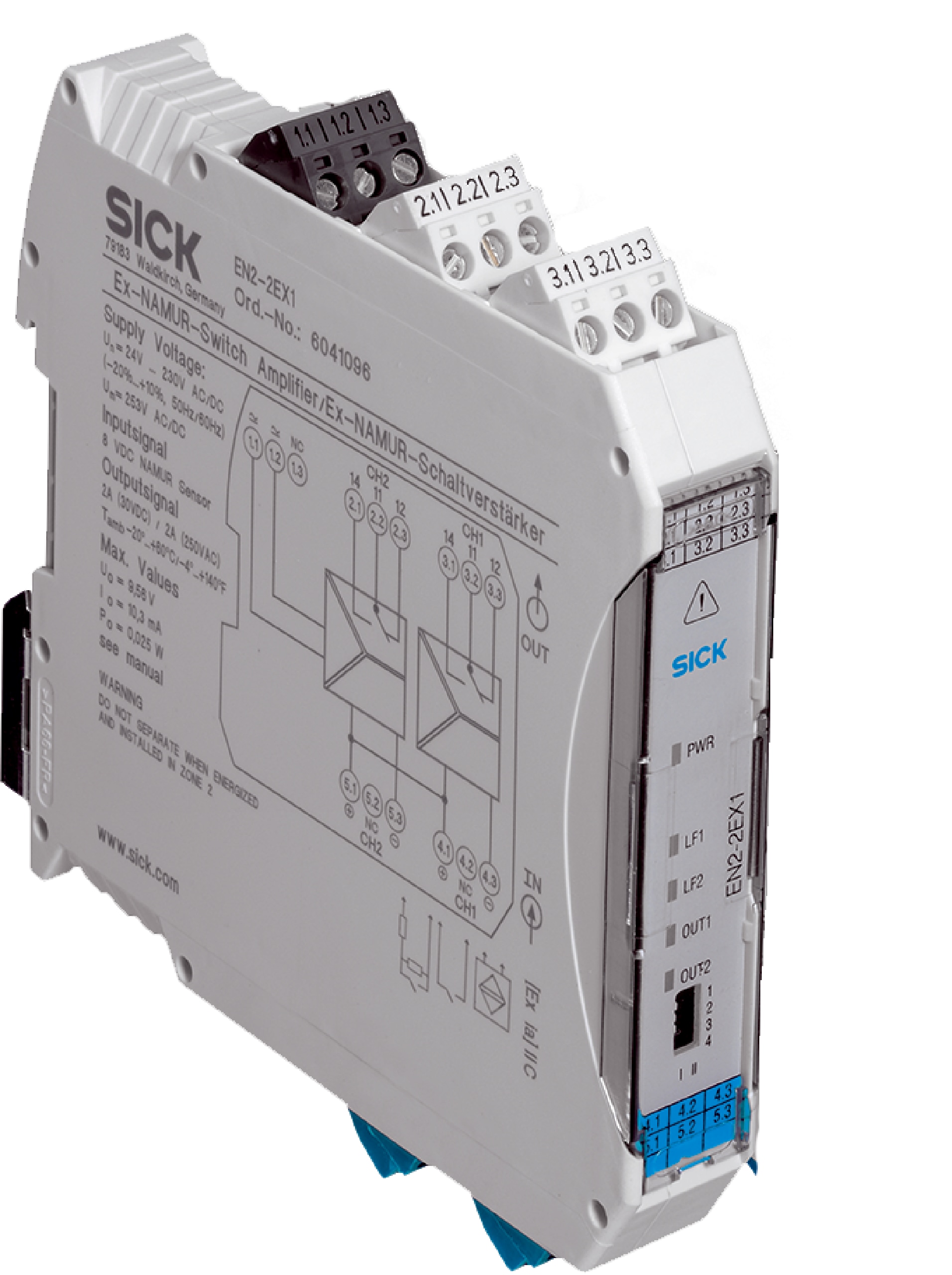

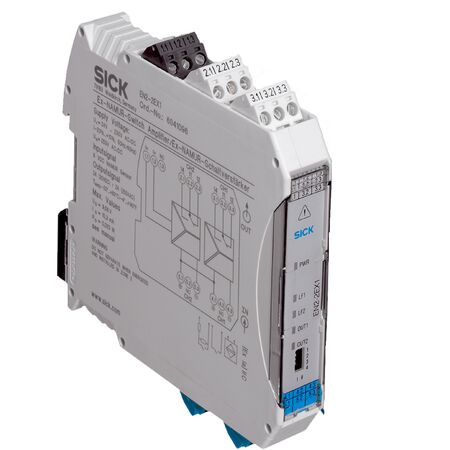

The SICK EN2-2EX1 is a NAMUR isolating amplifier with cable fault detection, designed for industrial automation and hazardous area applications, featuring dual relay outputs and wide voltage compatibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EN2-2EX1 | Integration modules and adapters
Brand: SICK
SKU: 6041096
Alternatively Known As: NAMUR Isolating Amplifier, EN2-2EX1 Module, SICK Isolator, Cable Fault Detector Module
Technical Specifications
- Accessory group: Power supply modules
- Switching outputs: 2 NO relay (1 per channel)
- Supply voltage: 24 V to 230 V AC/DC
- Housing material: Plastic
- Enclosure rating: IP20
- Ambient operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +80 °C
- EC-Type examination certificate: IBExU11ATEX1034 X
- Ex-approvals IECEx: IECEx IBE 14.0024X
- Ex-approvals ATEX: ATEX II (1)G [Ex ia Ga] IIC; ATEX II (1)D [Ex ia Da] IIIC; ATEX II 3 (1)G Ex ec nC [ia Ga] IIC T4 Gc
- Dimensions (H x L x W): 100mm x 120mm x 50mm
- Weight: 0.3 kg
Key Features
- NAMUR isolating amplifier for safe signal processing
- Cable fault detection functionality
- Two normally open (NO) relay switching outputs, one per channel
- Wide supply voltage range from 24 V to 230 V AC/DC
- Robust plastic housing with IP20 enclosure rating
- Certified for hazardous areas with ATEX and IECEx approvals
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation must be performed by a qualified electrician familiar with hazardous area equipment and compliance with ATEX and IECEx standards.
Applications
- Industrial automation systems requiring safe signal isolation
- Hazardous area installations needing ATEX and IECEx certified equipment
- Process control environments with NAMUR sensor integration
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Enhances system safety reducing risk of electrical faults
- Durable design reduces need for frequent replacements
- Supports energy-efficient industrial automation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK EN2-2EX1 NAMUR Isolating Amplifier is available for immediate purchase, ideal for industrial automation and hazardous area signal isolation applications.
