Trade Discount 25%

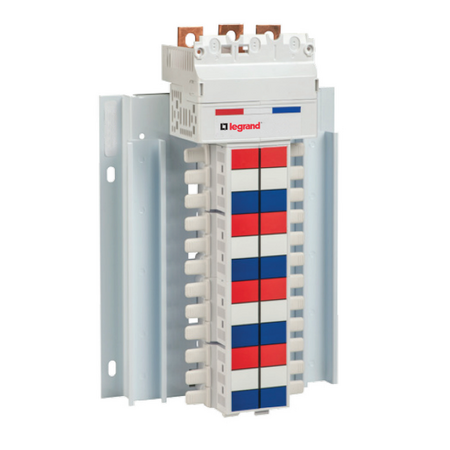

Encapsulated Chassis 3P 25kA | 250A 24 Pole | Bottom Feed by Legrand
Encapsulated chassis with 250A current and 25kA short-circuit rating—ideal for industrial and large residential power distribution. Built for enhanced protection, with bottom feed design for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Encapsulated Chassis 3P 25KA/0.1S 250A 24 Pole Bottom Feed
Brand: Legrand
SKU: ENC250-24-BF
Alternatively Known As: 250A Power Distribution Chassis, 25kA Circuit Breaker
Technical Specifications
- Rated Current: 250A
- Pole Configuration: 3 Pole
- Short Circuit Rating: 25kA
- Time Delay: 0.1s
- Mounting: Bottom Feed
- Dimensions (H x L x W): 100mm x 300mm x 400mm
- Weight: 4.5 kg
Key Features
- Encapsulated design for enhanced protection against environmental factors.
- 25kA short-circuit rating for reliable safety.
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with safety standards.
Applications
- Industrial: Power distribution in commercial buildings
- Residential: High-capacity needs in larger homes
- General: Suitable for various electrical installations requiring robust circuit protection
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear.
- Meets Australian electrical safety standards.
Environmental Benefits
- Durable construction minimizes the risk of environmental degradation.
Warranty Information
5 years warranty against manufacturing defects.
Available Now
The Encapsulated Chassis 3P 25KA/0.1S 250A 24 Pole Bottom Feed is available now for immediate purchase. Ideal for industrial and large residential applications requiring robust power distribution.
