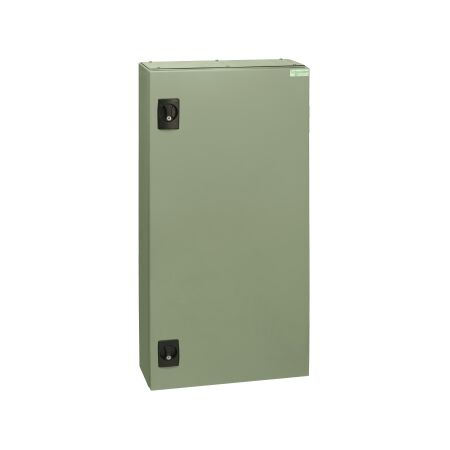

Encapsulated Distribution Board 72 Poles | 160A Main Switch | IP42 Rated | Grey by Clipsal
Encapsulated distribution board with 72 poles and 160A main switch—ideal for commercial and residential electrical distribution. Built for efficient circuit management, with IP42 protection and surface mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, MB Encapsulated distribution board, 72 poles, 160A main switch, 18mm, IP42, grey
Brand: Clipsal
SKU: MB272E31
Alternatively Known As: Acti9 Distribution Board, Encapsulated DB, Circuit Protection Board
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 160 A
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Network frequency: 50 Hz
- Dimensions (H x L x W): 1200mm x 235mm x 580mm
- Weight: 41 kg
Key Features
- 72 poles with 18mm spacing for efficient circuit management.
- IP42 rated for protection against solid objects and water.
- 160A main switch for high current applications.
- Surface mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, large buildings
- Residential: High-demand homes requiring robust electrical distribution
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Mercury free and compliant with EU RoHS directives.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal Acti9 Encapsulated Distribution Board is available now for immediate purchase. Ideal for commercial and residential electrical distribution needs.
