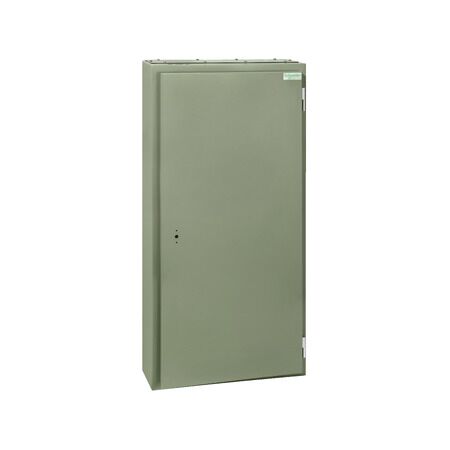

Encapsulated Distribution Board 72 Poles | 250A Main Switch | IP56 Weatherproof | Grey by Clipsal
Encapsulated distribution board with 72 poles and a 250A main switch—ideal for commercial and industrial facilities. Built for robust electrical distribution, with IP56 weatherproof protection and steel enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Acti9, MD Encapsulated distribution board, 72 poles, 250A main switch, 18mm, IP56, grey
Brand: Clipsal
SKU: MD272E32
Alternatively Known As: MD272E32, Acti9 Distribution Board, Encapsulated DB
Technical Specifications
- Rated operational voltage: 415 V
- Rated operational current: 250 A
- Number of poles: 72 x 18 mm
- IP degree of protection: IP56
- Breaking capacity: 25 kA
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 6 kV
- Enclosure material: Steel
- Enclosure type: Weatherproof enclosure
- Network frequency: 50 Hz
- Dimensions (H x L x W): 1200mm x 225mm x 580mm
- Weight: 46 kg
Key Features
- IP56 rated for weatherproof protection.
- 72 poles with a 250A main switch.
- Includes earth/neutral terminal block and removable gland plates.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Large buildings, industrial facilities
- General: Any application requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Packaging made with recycled cardboard.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Acti9 MD Encapsulated Distribution Board is available now for immediate purchase. Ideal for commercial and industrial applications requiring robust electrical distribution.
