Trade Discount 25%

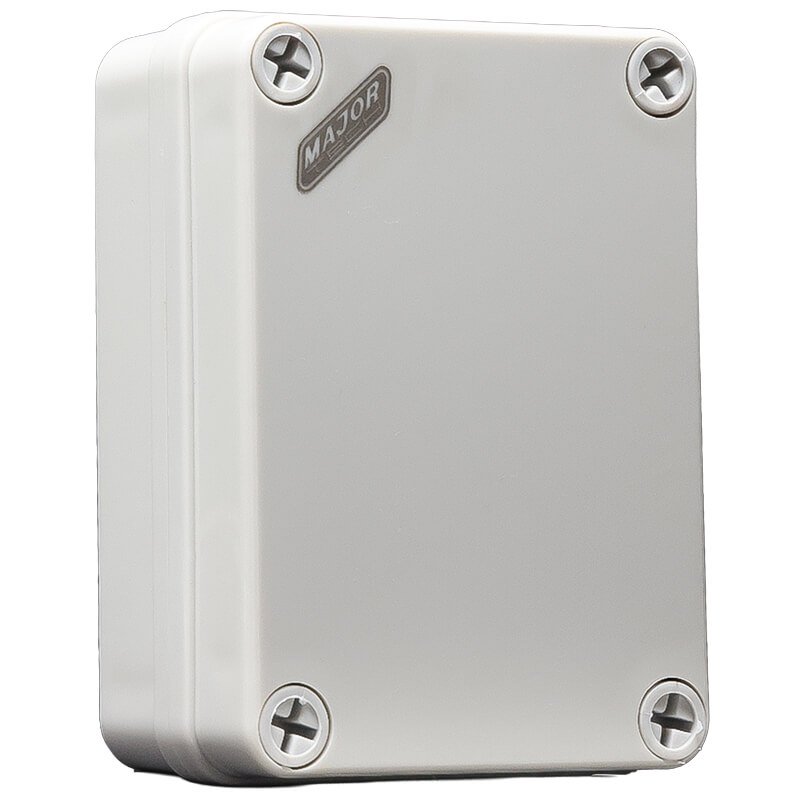

Enclosure IP67 110x80x45mm MajorTech
MajorTech enclosure features IP67 weatherproof rating and 110x80x45mm dimensions. Ideal for outdoor electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP67 Junction Box, Weatherproof Electrical Enclosure, Outdoor Electrical Project Box
Technical Specifications
- Ingress Protection: IP67
- Impact Protection: IK08
- Material: Non-flammable polycarbonate plastic
- Fasteners: Rust-resistant ABS screws
- Fire Resistance: HF rated to 850°C for 30 seconds
- Operating Temperature: -5°C to 40°C
- Storage Temperature: -40°C to 75°C, maximum 95% relative humidity
- Shape: Rectangular
- Manufacturer Standards: IEC 60529 and IEC 60670
- Approvals and Testing: CE, RoHS, HF test, IK test and ISO 9001
- Dimensions (H x L x W): 45mm x 110mm x 80mm
- Weight: 0.15 kg
Key Features
- IP67 protection against dust ingress and temporary water immersion
- IK08 impact resistance for protection against mechanical impact
- Non-flammable polycarbonate construction for electrical installations
- Rust-resistant ABS screws for use in wet environments
- Suitable for indoor and outdoor electrical connections and small control components
- Compact rectangular format for confined installation spaces
Professional Installation Requirements
- No specialist installation is required for the enclosure itself. If used to house or terminate mains electrical wiring, installation and wiring should be performed by a licensed electrician in accordance with applicable Australian wiring requirements.
Applications
- Outdoor electrical installations
- Electrical junction and connection protection
- Small control circuits and terminal blocks
- Telecommunications and low-voltage equipment housing
- Residential, commercial and industrial electrical projects
Standards & Compliance
- AS/NZS 60529: Applicable Australian/New Zealand standard for ingress protection classifications; the manufacturer specifies IEC 60529 for the IP67 rating.
- AS/NZS IEC 60670: Relevant Australian/New Zealand enclosure standard for boxes and enclosures for electrical accessories; the manufacturer specifies IEC 60670.
Environmental Benefits
- RoHS approval supports restriction of certain hazardous substances in the product
- Durable polycarbonate construction and corrosion-resistant fasteners can extend service life and reduce replacement waste
- Protects enclosed electrical components from dust and water exposure, helping reduce premature equipment failure
Warranty Information
5-year limited warranty for Major Tech distribution boards and enclosures, subject to the manufacturer’s warranty terms and exclusions. ([majortech.com.au](https://www.majortech.com.au/shipping-returns?utm_source=openai))
Available Now
Available through Major Tech and authorised Australian electrical distributors.
