Enclosure IP67 120x120x100mm MajorTech

BRAND: Major Tech
SKU: VW121210
$22.20 List price: $29.60
+ −
30 Days Return Electricians Unlock Trade Access

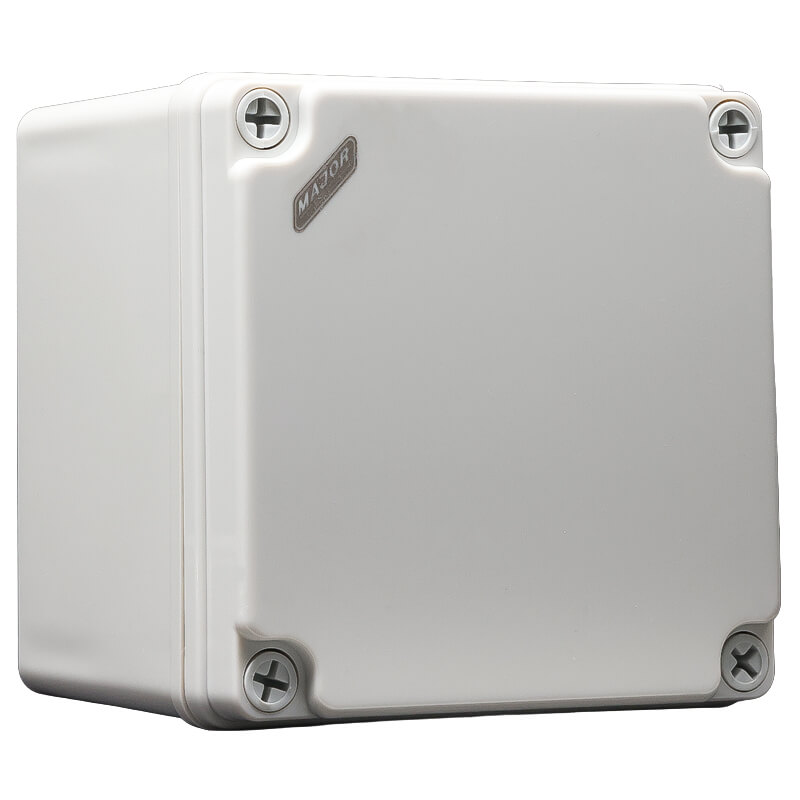

MajorTech enclosure features IP67 weatherproof rating and 120x120x100mm dimensions. Ideal for outdoor electrical installations.

Alternatively Known As: IP67 Junction Box, Weatherproof Electrical Enclosure, Polycarbonate Project Box, VETI VW121210 Enclosure

Technical Specifications
  • Model: VW121210
  • Ingress Protection: IP67
  • Impact Protection: IK08
  • Material: Non-flammable polycarbonate plastic
  • Fasteners: Durable ABS screws
  • Fire Resistance: HF test to 850°C for 30 seconds
  • Operating Temperature: -5°C to 40°C
  • Storage Temperature: -40°C to 75°C, maximum 95% humidity
  • Manufacturer Standards: IEC 60529 and IEC 60670
  • Approvals and Testing: CE, RoHS, HF test, IK test and ISO 9001
  • Dimensions (H x L x W): 100mm x 125mm x 125mm
  • Weight: 0.35 kg
Key Features
  • IP67 protection against dust ingress and temporary water immersion
  • Robust polycarbonate construction for outdoor and industrial applications
  • IK08 impact resistance
  • Non-flammable enclosure material
  • ABS screws provide corrosion-resistant fastening
  • Suitable for protecting electrical and electronic components
  • Five-year limited warranty
Professional Installation Requirements
  • The enclosure itself is a passive component. Any mains-voltage wiring or electrical equipment installed inside it should be fitted by a licensed electrician in accordance with applicable Australian electrical installation requirements.
Applications
  • Outdoor electrical installations
  • Junction and termination boxes
  • Protection of control equipment and electronic components
  • Industrial and commercial electrical systems
  • Communications and instrumentation enclosures
Standards & Compliance
  • AS/NZS 60529 - Degrees of protection provided by enclosures using the IP Code
Environmental Benefits
  • Polycarbonate construction provides durability and extended service life, reducing replacement waste
  • RoHS approval supports restriction of specified hazardous substances
  • Suitable for outdoor protection of equipment, helping extend component service life
Warranty Information

Five-year limited warranty stated by MajorTech for its IP67 enclosure range, subject to the manufacturer's warranty terms and conditions.

Available Now

Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock levels.
