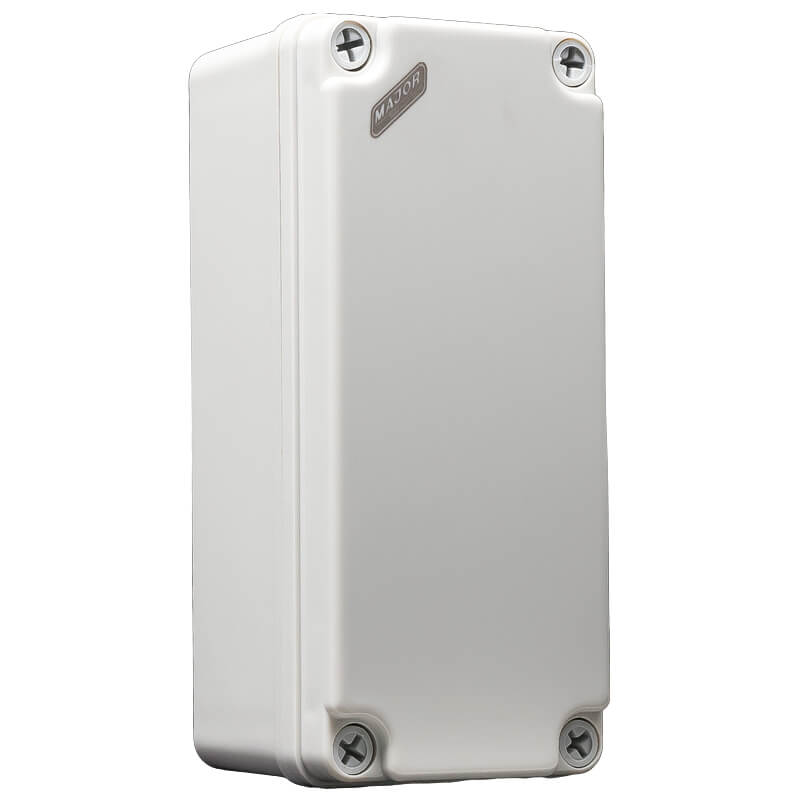

Enclosure IP67 180x80x70mm MajorTech
MajorTech enclosure features IP67 weatherproof rating and 180x80x70mm dimensions. Ideal for outdoor electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VW1887 IP67 Enclosure, Weatherproof Electrical Enclosure, Outdoor Junction Box, Polycarbonate Electrical Box
Technical Specifications
- Model: VW1887
- Ingress Protection: IP67
- Impact Protection: IK08
- Material: Non-flammable polycarbonate plastic
- Fasteners: Rust-resistant ABS screws
- Fire Resistance: HF rated to 850°C for 30 seconds
- Operating Temperature: -5°C to 40°C
- Storage Temperature: -40°C to 75°C, maximum 95% humidity
- Manufacturer Standards: IEC 60529 and IEC 60670
- Approvals and Testing: CE, RoHS, HF test, IK test and ISO 9001
- Dimensions (H x L x W): 70mm x 180mm x 80mm
- Weight: 0.3 kg
Key Features
- IP67 protection against dust ingress and temporary water immersion
- IK08 impact resistance for improved protection against mechanical impact
- Non-flammable polycarbonate construction
- Rust-resistant ABS screws suitable for damp and outdoor environments
- Fire resistant to 850°C for 30 seconds
- Rectangular enclosure suitable for electrical and electronic equipment
- Five-year limited warranty
Applications
- Outdoor electrical installations
- Protecting electrical and electronic components from dust and moisture
- Industrial control and instrumentation systems
- Outdoor junction and connection points
- Low-voltage wiring and control equipment enclosures
Standards & Compliance
- AS/NZS 60529: Applicable Australian and New Zealand standard for the IP67 ingress protection classification
- AS/NZS IEC 60670 series: Relevant Australian and New Zealand adoption of the IEC 60670 enclosure standard; manufacturer specifies IEC 60670
Environmental Benefits
- Polycarbonate construction provides a durable service life, reducing replacement frequency and material waste
- Polycarbonate components may be recyclable where suitable local recycling facilities accept the material
- RoHS approval supports restriction of hazardous substances in the product
- IP67 protection helps protect enclosed equipment from moisture-related failure and premature replacement
Warranty Information
Five-year limited warranty for distribution boards and enclosures, subject to MajorTech warranty conditions, proof of purchase and exclusions for misuse, unauthorised alteration, corrosion and inadequate maintenance.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
