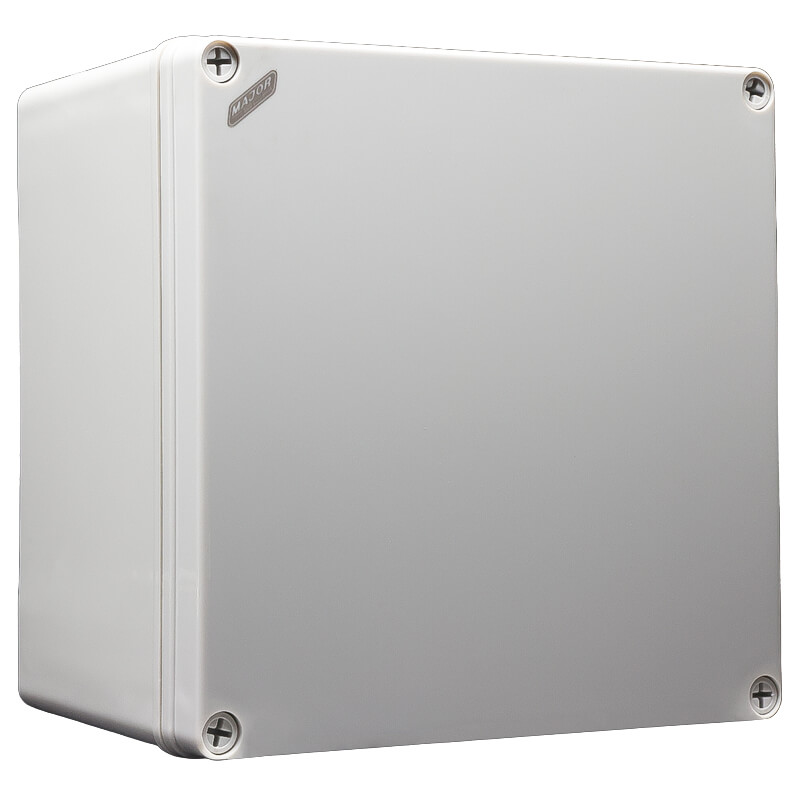

Enclosure IP67 200x200x130mm MajorTech

BRAND: Major Tech
SKU: VW202013
$40.70 List price: $54.30
+ −
30 Days Return Electricians Unlock Trade Access
MajorTech enclosure features IP67 weatherproof rating and 200x200x130mm dimensions. Ideal for outdoor electrical installations.

Alternatively Known As: IP67 Electrical Enclosure, Weatherproof Junction Box, Polycarbonate Outdoor Enclosure

Technical Specifications
  • Model: VW202013
  • Ingress Protection: IP67
  • Impact Protection: IK08
  • Material: UV-stabilised polycarbonate plastic
  • Screw Material: ABS, rust resistant
  • Shape: Square
  • Fire Resistance: HF tested to 850°C for 30 seconds
  • Operating Temperature: -5°C to 40°C
  • Storage Temperature: -40°C to 75°C, maximum 95% relative humidity
  • Manufacturer-Stated Standards: IEC 60529 and IEC 60670
  • Manufacturer-Stated Approvals: CE, RoHS, HF test, IK test and ISO 9001
  • Dimensions (H x L x W): 130mm x 200mm x 200mm
  • Weight: 0.9 kg
Key Features
  • IP67 protection against dust ingress and temporary water immersion
  • UV-stabilised polycarbonate construction for outdoor applications
  • IK08 impact-resistant enclosure design
  • Non-flammable enclosure material
  • Rust-resistant ABS screws
  • Square enclosure suitable for electrical and control equipment
  • Fire resistance tested to 850°C for 30 seconds
Applications
  • Outdoor electrical installations
  • Weatherproof junction and connection points
  • HVAC and refrigeration control equipment
  • Telecommunications and data equipment protection
  • Industrial control and automation systems
  • Electrical equipment requiring dust and water ingress protection
Standards & Compliance
  • AS/NZS 60529 — applicable Australian/New Zealand standard for degrees of protection provided by enclosures and IP classifications
  • AS/NZS IEC 60670 series — relevant Australian/New Zealand enclosure standard corresponding to the manufacturer's stated IEC 60670 reference
Environmental Benefits
  • Durable polycarbonate construction can extend service life and reduce replacement waste
  • UV stabilisation supports longer outdoor service life
  • RoHS approval indicates restriction of certain hazardous substances
  • Polycarbonate plastic may be recyclable through suitable plastics-recycling streams
Warranty Information

5-year limited warranty for distribution boards and enclosures, subject to Major Tech warranty terms and exclusions.

Available Now

Available through MajorTech and authorised Australian electrical distributors.
