Trade Discount 25%

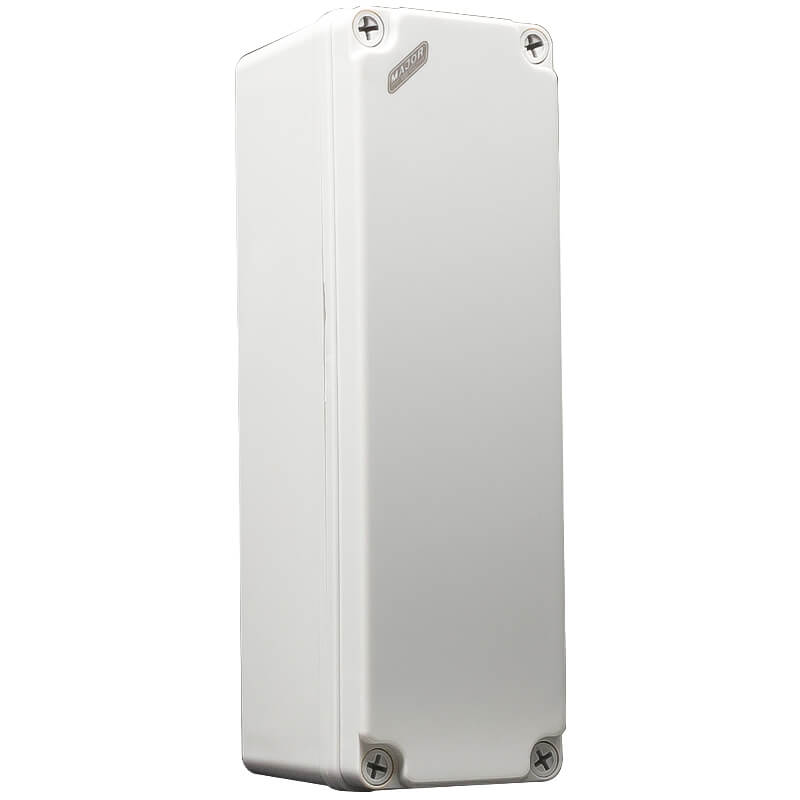

Enclosure IP67 250x80x85mm MajorTech
MajorTech enclosure features IP67 weatherproof rating and 250x80x85mm dimensions. Ideal for outdoor electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP67 Weatherproof Enclosure, Outdoor Electrical Enclosure, Polycarbonate Junction Box, Waterproof Electrical Box
Technical Specifications
- Model: VW2588
- Enclosure Shape: Rectangular
- Ingress Protection: IP67
- Impact Protection: IK08
- Material: UV-stabilised polycarbonate plastic
- Fasteners: Rust-resistant ABS screws
- Fire Resistance: HF to 850°C for 30 seconds
- Ambient Temperature: -5°C to 40°C
- Storage Temperature: -40°C to 75°C, maximum 95% relative humidity
- Manufacturer Standards: IEC 60529 and IEC 60670
- Approvals and Testing: CE, RoHS, HF test, IK test and ISO 9001 manufacturing
- Dimensions (H x L x W): 85mm x 250mm x 80mm
- Weight: 0.45 kg
Key Features
- IP67 protection against dust ingress and temporary water immersion
- UV-stabilised polycarbonate construction for indoor and outdoor use
- IK08 impact resistance for protection against mechanical impact
- Non-flammable enclosure material with HF fire resistance to 850°C for 30 seconds
- Rust-resistant ABS screws for use in wet or exposed environments
- Rectangular enclosure suitable for electrical, control and junction-box applications
Professional Installation Requirements
- No specialist installation is required for the passive enclosure itself. Where the enclosure houses mains-voltage wiring or electrical equipment, installation and termination should be completed by a licensed electrician in accordance with applicable Australian wiring requirements.
Applications
- Outdoor electrical installations
- Electrical junction and termination points
- Control and automation equipment protection
- Telecommunications and low-voltage equipment
- Industrial, commercial and residential wiring protection
- Wet, dusty or exposed installation environments
Standards & Compliance
- AS/NZS 60529: Applicable Australian/New Zealand standard for enclosure ingress-protection classifications; the manufacturer specifies IEC 60529 for the IP67 rating.
- AS/NZS IEC 60670 series: Relevant Australian/New Zealand standard family for boxes and enclosures for electrical accessories; the manufacturer specifies IEC 60670.
Environmental Benefits
- UV-stabilised polycarbonate construction supports extended service life and reduces replacement waste.
- RoHS approval supports restriction of certain hazardous substances in the product.
- Reusable protective enclosure can help extend the service life of enclosed electrical and electronic equipment.
Warranty Information
5-year manufacturer warranty for MajorTech distribution boards and enclosures, subject to the manufacturer's warranty terms and exclusions.
Available Now
Available through MajorTech and authorised Australian electrical distributors.
