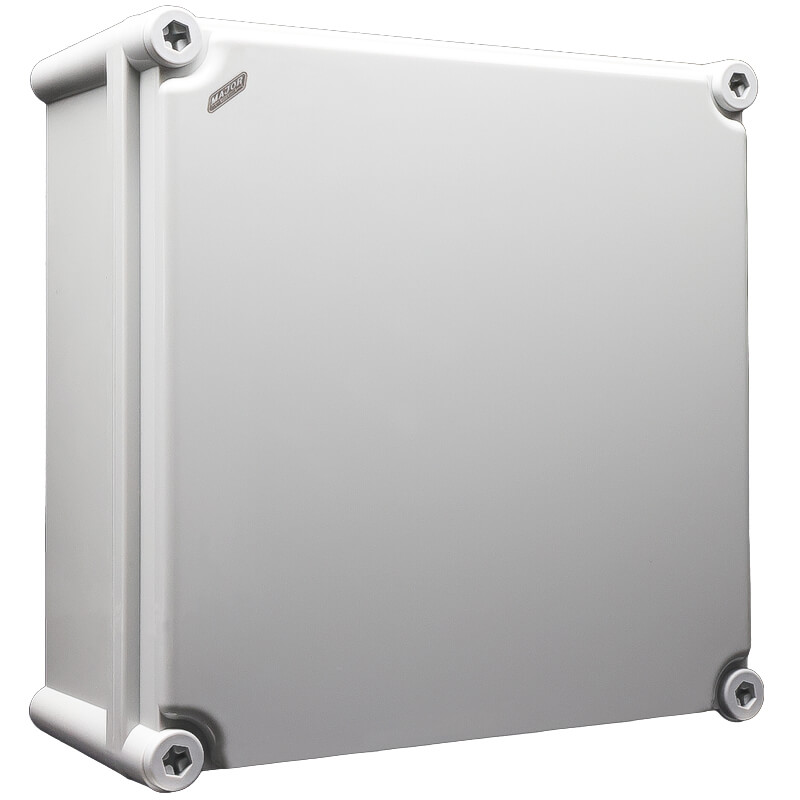

Enclosure IP67 280x280x130mm MajorTech
MajorTech enclosure features IP67 weatherproof rating and 280x280x130mm dimensions. Ideal for outdoor electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP67 Junction Enclosure, Weatherproof Electrical Enclosure, Polycarbonate Electrical Box, VETI VW282813 Enclosure
Technical Specifications
- Model: VW282813
- Enclosure Shape: Square
- Ingress Protection: IP67
- Impact Resistance: IK08
- Material: Non-flammable polycarbonate plastic
- Fasteners: Rust-resistant ABS screws
- Fire Resistance: HF-rated to 850°C for 30 seconds
- Ambient Operating Temperature: -5°C to 40°C
- Standards Listed by Manufacturer: IEC 60529 and IEC 60670
- Approvals and Testing: CE, RoHS, HF test, IK test and ISO 9001 manufacturing
- Dimensions (H x L x W): 130mm x 280mm x 280mm
- Weight: 1.4 kg
Key Features
- IP67 protection against dust ingress and temporary water immersion
- Durable polycarbonate construction for indoor and outdoor electrical installations
- IK08 impact resistance for protection against mechanical impacts
- Rust-resistant ABS screws suitable for wet and exposed environments
- Non-flammable enclosure material with HF fire-resistance testing to 850°C for 30 seconds
- Square format suitable for electrical, control, automation and communications equipment
Professional Installation Requirements
- The enclosure itself is a passive component. Any mains-voltage wiring, cable termination or electrical equipment installation inside it should be completed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's installation instructions. Cable entries must be sealed appropriately to maintain the IP67 rating.
Applications
- Outdoor electrical installations
- Junction and termination points
- Control and automation equipment
- Telecommunications and communications equipment
- Small distribution and electrical control assemblies
- Industrial and commercial equipment protection
Standards & Compliance
- AS/NZS 60529: Australian/New Zealand adoption of IEC 60529 for ingress protection ratings, relevant to the stated IP67 classification
- AS/NZS IEC 60670: Relevant Australian/New Zealand enclosure standard where the product is used as a box or enclosure for electrical accessories
- AS/NZS 3000: Applicable to the selection, installation and wiring of electrical equipment housed within the enclosure
Environmental Benefits
- Polycarbonate construction provides a durable service life, helping reduce replacement waste
- Polycarbonate and ABS components may be recyclable through appropriate plastics recycling channels
- RoHS approval indicates restriction of certain hazardous substances
- IP67 protection helps protect enclosed equipment from moisture and dust, supporting longer equipment service life
Warranty Information
5-year limited warranty for MajorTech distribution boards and enclosures, subject to the manufacturer's warranty terms and any required product registration.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock levels.
