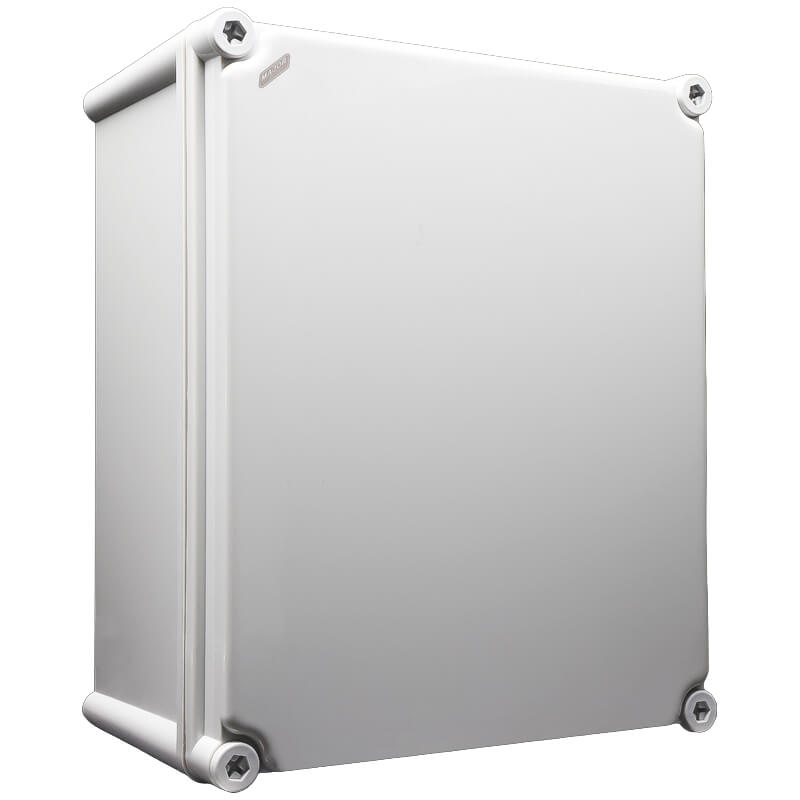

Enclosure IP67 340x280x180mm MajorTech
MajorTech enclosure features IP67 weatherproof rating and 340x280x180mm dimensions. Ideal for outdoor electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: IP67 Junction Box, Weatherproof Electrical Enclosure, Outdoor Electrical Box, VETi IP67 Enclosure
Technical Specifications
- Model: VW342818
- Ingress Protection: IP67
- Impact Rating: IK08
- Material: Non-flammable polycarbonate plastic
- Fasteners: Durable ABS screws
- Fire Resistance: Up to 850°C for 30 seconds
- Ambient Temperature: -5°C to 40°C
- Storage Temperature: -40°C to 75°C, maximum 95% humidity
- Shape: Rectangular
- Manufacturer-Stated Standards: IEC 60529 and IEC 60670
- Manufacturer-Stated Approvals: CE, RoHS, HF test, IK test and ISO 9001
- Dimensions (H x L x W): 180mm x 340mm x 280mm
- Weight: 1.6 kg
Key Features
- IP67 protection against dust ingress and temporary water immersion
- IK08 impact resistance for demanding installation environments
- Non-flammable polycarbonate construction
- Rust-resistant ABS screws for outdoor use
- Fire resistance tested to 850°C for 30 seconds
- Suitable for protecting electrical and electronic equipment
- Five-year manufacturer warranty
Professional Installation Requirements
- The enclosure may be mechanically installed by a competent person; any mains wiring or electrical equipment installation inside it must be completed by a licensed electrician in accordance with AS/NZS 3000 and applicable local requirements.
Applications
- Outdoor electrical installations
- Industrial control and automation equipment
- Junction and connection points
- Telecommunications and data equipment
- HVAC and building services equipment
- Protection of electronic components in dusty or wet environments
Standards & Compliance
- AS/NZS 60529: Relevant Australian/New Zealand adoption for the stated IP67 ingress protection classification
- AS/NZS IEC 60670: Relevant Australian/New Zealand enclosure standard; the manufacturer specifies IEC 60670
- AS/NZS 3000: Applicable to electrical installation and wiring work carried out within the enclosure
Environmental Benefits
- Durable polycarbonate construction can extend service life and reduce replacement waste
- RoHS approval indicates restriction of specified hazardous substances
- Corrosion-resistant plastic and ABS components support longer outdoor service life
- Polycarbonate is recyclable through suitable plastics recycling streams
Warranty Information
Five-year limited warranty for MajorTech distribution boards and enclosures, subject to the manufacturer's warranty terms and conditions.
Available Now
Available through MajorTech and authorised Australian electrical distributors, subject to distributor stock.
