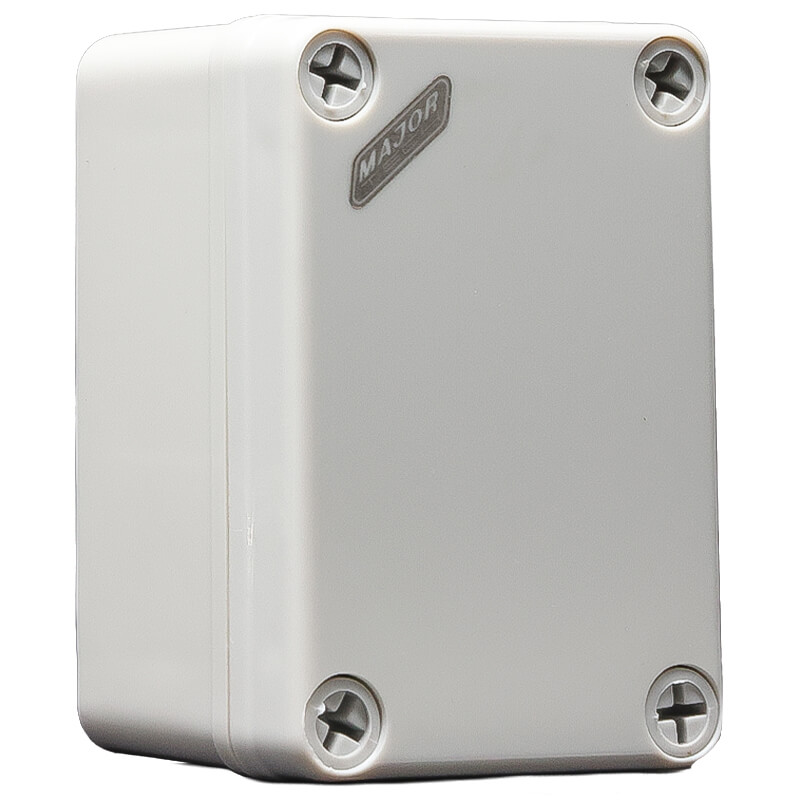

Enclosure IP67 95x65x55mm MajorTech
MajorTech enclosure features IP67 weatherproof rating and 95x65x55mm dimensions. Ideal for outdoor electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: VW965 IP67 Enclosure, Weatherproof Electrical Junction Box, Polycarbonate Project Enclosure
Technical Specifications
- Model: VW965
- Shape: Rectangular
- Ingress Protection: IP67 water and dust protection
- Impact Protection: IK08
- Material: Non-flammable polycarbonate (PC)
- Fasteners: Rust-resistant ABS screws
- Fire Resistance: HF test to 850°C for 30 seconds
- Ambient Temperature: -5°C to 40°C
- Storage Temperature: -40°C to 75°C; maximum 95% humidity
- Manufacturer Standards: IEC 60529 and IEC 60670
- Manufacturer Approvals: CE, RoHS, HF test, IK test and ISO 9001
- Dimensions (H x L x W): 55mm x 95mm x 65mm
- Weight: 0.15 kg
Key Features
- IP67 protection against dust ingress and temporary water immersion
- IK08 impact resistance for improved mechanical protection
- Non-flammable polycarbonate housing
- Rust-resistant ABS cover screws
- Suitable for protecting electrical connections and components in outdoor or damp environments
- Compact rectangular design
Professional Installation Requirements
- The enclosure itself is a passive component, but installation involving mains-voltage wiring or electrical equipment should be completed by a licensed electrician in accordance with applicable Australian electrical installation requirements.
Applications
- Outdoor electrical junctions and connections
- Protection of control components and low-voltage electronics
- Telecommunications and data cabling enclosures
- Industrial, commercial and residential electrical installations
- Damp, dusty or weather-exposed locations
Standards & Compliance
- Applicable reference: AS 60529:2025, the Australian standard for degrees of protection provided by enclosures; the manufacturer specifies IEC 60529 for the IP67 rating. ([major-tech.com](https://www.major-tech.com/product/ip67-enclosure-95-x-65-x-55mm?utm_source=openai))
- Applicable reference: AS/NZS IEC 60670 series for boxes and enclosures used with electrical accessories; the manufacturer specifies IEC 60670. ([major-tech.com](https://www.major-tech.com/product/ip67-enclosure-95-x-65-x-55mm?utm_source=openai))
Environmental Benefits
- Polycarbonate construction provides durability and can extend service life, reducing replacement waste
- RoHS approval indicates restriction of specified hazardous substances in the product
- IP67 protection helps shield enclosed electrical equipment from dust and water ingress, supporting longer component life
- Polycarbonate and ABS components may be recyclable through suitable plastics recycling streams where local facilities accept them
Warranty Information
5-year limited warranty as listed by MajorTech for the VW965 enclosure; warranty claims are subject to the manufacturer’s terms and proof-of-purchase requirements. ([majortech.com.au](https://www.majortech.com.au/product/ip67-enclosure-95-x-65-x-55mm?utm_source=openai))
Available Now
Available through MajorTech and authorised Australian electrical distributors; live stock should be confirmed before ordering. ([majortech.com.au](https://www.majortech.com.au/product/ip67-enclosure-95-x-65-x-55mm?utm_source=openai))
