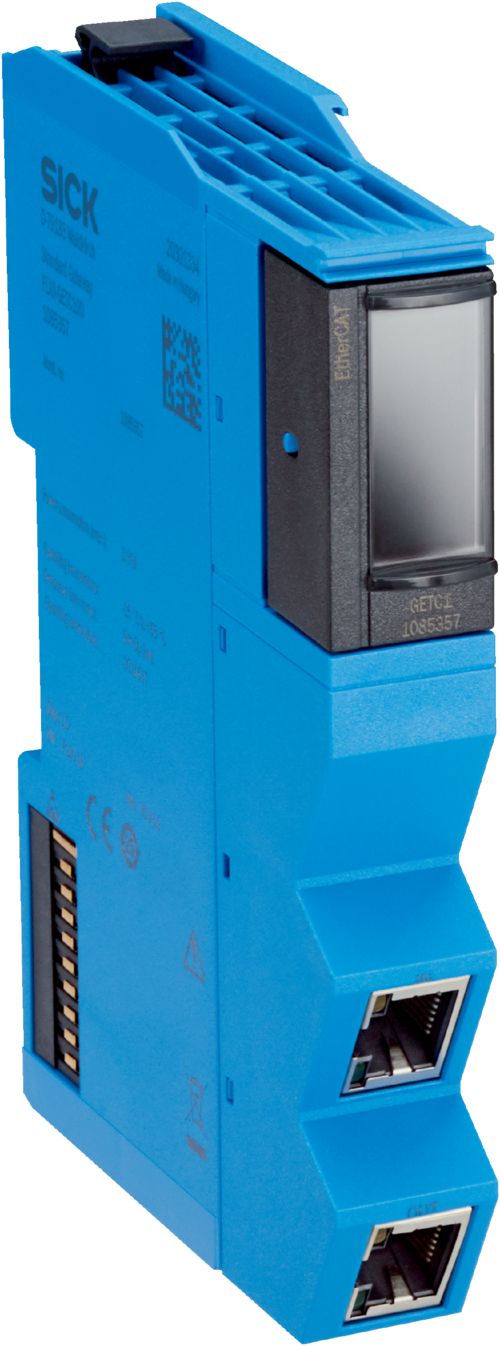

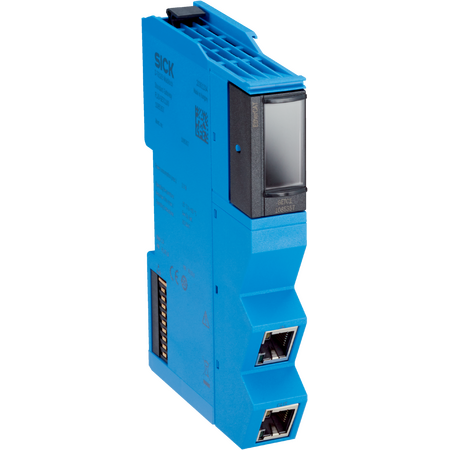

EtherCAT Gateway Module FLX0-GETC100 Safety Controller Integration Low Power Loss SICK

BRAND: SICK
SKU: 1085357
$1,315.00 List price: $1,652.90
+ −
30 Days Return Electricians Unlock Trade Access
The EtherCAT Gateway Module FLX0-GETC100 enables seamless data transmission for safety controllers within EtherCAT networks.
Technical Specifications
  • Module Type: Gateway
  • Fieldbus: EtherCAT®
  • Configuration Method: Software (Safety Designer) and TFT display
  • Fieldbus Interface: 2 x RJ45 female connectors
  • Protection Class: III (EN 61140)
  • Interference Resistance: EN 61000-6-2
  • Interference Emission: EN 61000-6-4
  • Voltage Supply: Via backplane bus
  • Power Loss: ≤ 3.3 W
  • Current Consumption: 135 mA
  • Contamination Rating: 2 (IEC 61010-1)
  • Control Device Type: Open device (IEC 61010-2-201)
  • Enclosure Rating: IP20 (EN 60529)
  • Operating Temperature: -25 °C to +55 °C
  • Storage Temperature: -25 °C to +70 °C
  • Humidity: ≤ 95%, Non-condensing
  • Vibration Resistance: 1 g, 5 Hz to 200 Hz (EN 60068-2-6)
  • Shock Resistance: 15 g, 11 ms (EN 60068-2-27)
  • Dimensions (H x L x W): 125mm x 86mm x 18mm
  • Weight: 0.108 kg
Key Features
  • Enables safety controller data transmission to and from EtherCAT network
  • Configuration via software (Safety Designer) and TFT display
  • Two RJ45 female connectors for EtherCAT network integration
  • Low power loss of ≤ 3.3 W
  • Compact design with mounting on standard 35 mm IEC 60715 mounting rail
Professional Installation Requirements
  • Installation should be performed by qualified personnel familiar with EtherCAT networks and safety controller integration to ensure compliance with safety standards.
Applications
  • Industrial automation safety systems
  • Integration of safety controllers into EtherCAT networks
  • Control and diagnostic data communication in safety applications
Standards & Compliance
  • AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
  • Supports efficient network communication reducing system downtime and energy waste
  • Complies with RoHS regulations limiting hazardous substances
Warranty Information

Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.

Available Now

The SICK FLX0-GETC100 Gateway Module is available for immediate purchase, ideal for industrial safety system integration and network communication.
