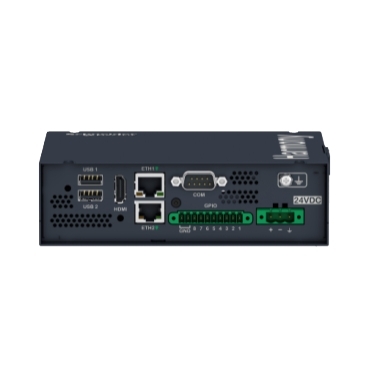

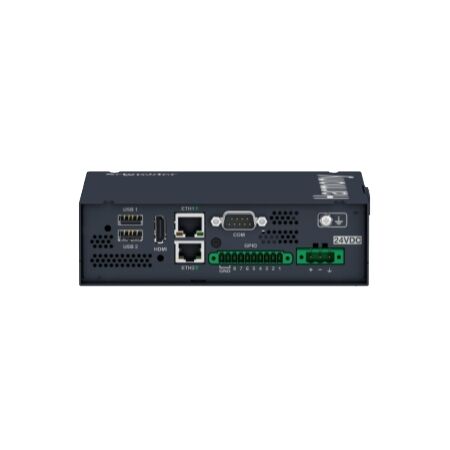

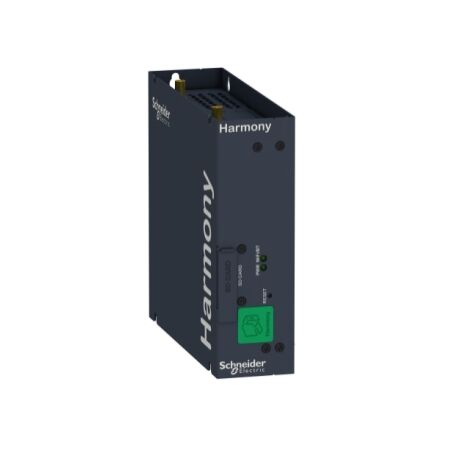

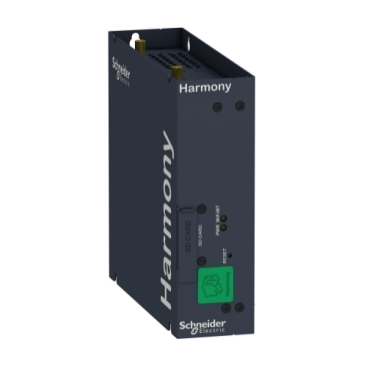

EV Charge Controller 100 Stations Dynamic Management IP40 Clipsal

BRAND: Clipsal
SKU: SCHHMIBSCEA53D1EDL
$16,382.50 List price: $20,415.10
+ −
30 Days Return Electricians Unlock Trade Access
Provides dynamic charge management for up to 100 EV charging stations in commercial charging environments. Features IP40 protection, 12–24V DC input, RJ45 Cat.6 communication and wall-mount installation with horizontal or vertical positioning. Complies with EN/IEC 61131-2, EN 55011 and EN/IEC 61000-6-4 standards for reliable indoor charging management. Scroll down for complete specifications, communication details and installation requirements.
Technical Specifications
  • Power consumption: 16W
  • Input voltage: 12...24 V DC
  • IP Rating: IP40
  • Operating temperature: 0...50 °C
  • Storage temperature: -20...60 °C
  • Relative humidity: 10...95 %
  • Communication interface: Ethernet RJ45 Cat.6
  • Dimensions (H x L x W): 150mm x 46mm x 157mm
  • Weight: 1 kg
Key Features
  • Dynamic charge management for up to 100 charging stations.
  • Supports priority charging profiles and time-of-use settings.
  • Wall mountable with horizontal/vertical positioning.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Commercial: Electric vehicle charging stations
  • General: Indoor charging management for electric vehicles
Standards & Compliance
  • Complies with EN/IEC 61131-2, EN 55011, and EN/IEC 61000-6-4 standards.
Environmental Benefits
  • Green Premium product status indicating reduced environmental impact.
Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The EcoStruxure EV Charging Expert is available now for immediate purchase. Ideal for commercial electric vehicle charging applications.

FAQ

Q: How many charging stations can this EV charge controller manage?
A: This controller supports dynamic charge management for up to 100 EV charging stations.

Q: Where is this EV charge controller intended to be used?
A: It is designed for commercial EV charging stations and general indoor charging management for electric vehicles.


Pair this EV charge controller with an EV charging station to enable coordinated charging management.
Install the system with an EV charger enclosure for compatible equipment mounting applications.
An EV charger pedestal provides a practical mounting solution for commercial charging installations.

A commercial EV charger selection guide outlines important planning considerations for multi-station charging infrastructure.

Licensed electricians can unlock trade access pricing — log in or register to get started.


HMIBSCEA53D1EDL (HMIBSCEA53D1EDL, 213 Kb) [Download]
