EV Charging Station 7.4kW 32A Type 2 5m WiFi IP55 Clipsal

BRAND: Clipsal
SKU: SCHEVH5A07N2C5
$1,507.60 List price: $1,878.60
+ −
30 Days Return Electricians Unlock Trade Access
Clipsal 7.4kW 32A Type 2 EV charger with 5m tethered cable, WiFi Ethernet OCPP 1.6, IP55 and IK10. Wall-mounted home charging.
Technical Specifications
  • Nominal output power: 7.4 kW, 32 A
  • Socket outlet type: cable T2
  • Input type: dry contact for dynamic energy management
  • Rated supply voltage: 230...240 V AC 50...60 Hz +/- 10 %
  • IP Rating: IP55
  • IK Rating: IK10
  • Communication network type: Wi-Fi, wireless, Ethernet
  • Communication port protocol: OCPP 1.6
  • Dimensions (H x L x W): 352mm x 117mm x 244mm
  • Weight: 4.5 kg
Key Features

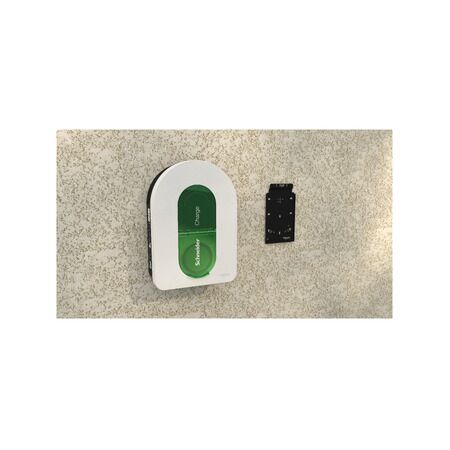

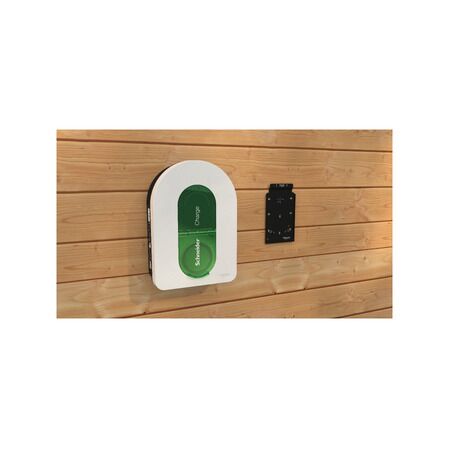

  • Wall-mounted design for easy installation.

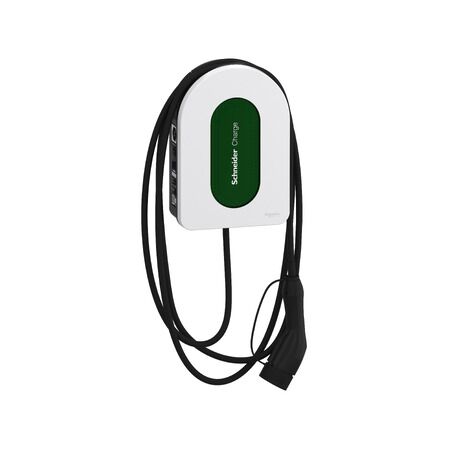

  • Attached 5m cable for convenient charging.
  • Local status indication with red, green, and blue LED.
  • Earth-leakage protection for safety.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Home charging for electric vehicles
  • Commercial: Public charging stations, fleet charging
Standards & Compliance
  • Complies with EN 61851 and IEC 61851-1 standards.
Environmental Benefits
  • Packaging made with recycled cardboard.
  • Packaging without single-use plastic.
Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Schneider Charge Charging Station is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging.

EVH5A07N2C5 (EVH5A07N2C5, 204 Kb) [Download]
