EVlink Smart Wallbox Charger 32A T1 Cable IP54 Rated Clipsal

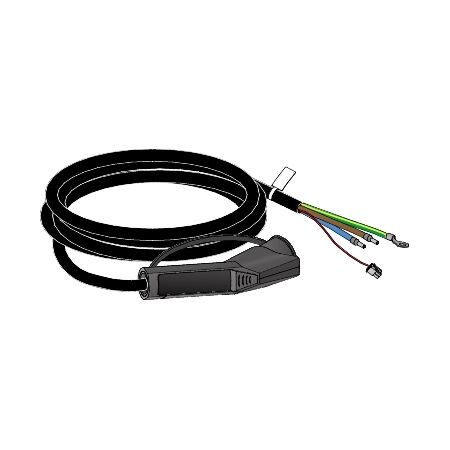

Clipsal EVlink Smart Wallbox Charger Cable Rated features 32A rated current, T1 with silver plated contacts and 4.5m length.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated current: 32 A
- Socket number: 1
- Connector type: T1 with silver plated contacts
- Length: 4.5 m
- IP Rating: IP54
- IK Rating: IK10
- Operating temperature: -30 to 50 °C
- Storage temperature: -40 to 80 °C
- Relative humidity: 5 to 95 %
- Rated supply voltage: 220-240 V AC 50/60 Hz
- Nominal output power: 7.4 W
- Dimensions (H x L x W): 150mm x 400mm x 300mm
- Weight: 2.6 kg
Key Features
- Attached T1 charging cable with silver plated contacts.
- IP54 rated for protection against dust and water.
- Compatible with EVlink Smart Wallbox EVB1 charging station.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Home charging for electric vehicles
- Commercial: Charging stations for businesses and public areas
Standards & Compliance
- Complies with IEC 62196-1 and IEC 62196-2 standards.
Environmental Benefits
- Contributes to reduced emissions by facilitating electric vehicle charging.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The Clipsal EVlink Smart Wallbox with Attached Cable T1 32A 1-Ph IEC 4.5m is available now for immediate purchase. Ideal for residential and commercial electric vehicle charging solutions.
FAQ
Q: What connector type does this EVlink Smart Wallbox charger use?
A: It features a Type 1 attached cable with silver plated contacts and a cable length of 4.5m.
Q: Is this charger suitable for residential and commercial applications?
A: Yes. It is designed for home charging as well as commercial charging stations for businesses and public areas.
Mount this charger on an EV charging station pedestal floor standing aluminum where a freestanding installation is preferred.
Protect the installation with an EV charging station enclosure IP66 metal pedestal mount for added equipment protection.
Integrate an EV load shedder 1P 32A to 100A LED indicators to help manage electrical demand during charging.
Read the EV charger cable Type 1 vs Type 2 guide to understand connector compatibility before selecting charging equipment.
