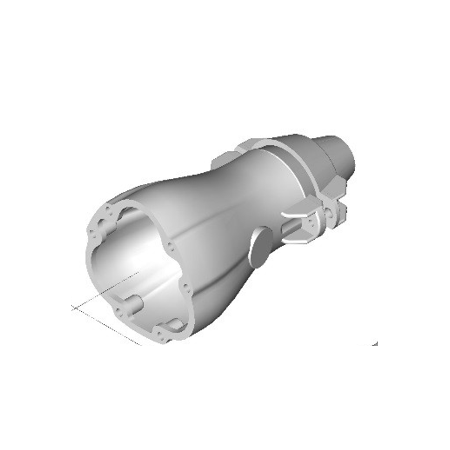

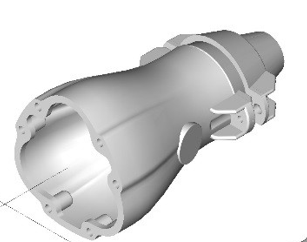

Ex Armoured PILC Gland 63-68mm | Stainless Steel | 11/11kV Voltage Rating | Flameproof Sealing | by Ausproof
The Ex Armoured PILC Gland 63-68mm is designed for high voltage cable terminations, featuring a robust stainless steel construction and flameproof sealing. Ideal for hazardous area electrical systems, this gland supports 11/11kV voltage ratings and is compatible with 300 mm² core size cables, ensuring safety and reliability in industrial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex Armoured PILC Gland 63-68mm | Stainless Steel | 11/11kV Voltage Rating | Flameproof Sealing | by Ausproof
Brand: Ausproof
SKU: RS951SS
Alternatively Known As: PILC Cable Gland, Armoured Cable Gland, Flameproof Cable Gland, Ex Gland 63-68mm
Technical Specifications
- Cable OD Under Armour: 63mm-68mm
- Cable Type: PILC
- Voltage Rating: 11/11kV
- Core Size: 300 mm²
- Comp Rubber Size: 63-68mm
- Material: Stainless Steel
- Dimensions (H x L x W): 80mm x 120mm x 80mm
- Weight: 1.5 kg
Key Features
- Designed for PILC SWA cables with outer diameter 63mm-68mm
- Suitable for 11/11kV voltage rating
- Stainless steel construction for corrosion resistance
- Compatible with 300 mm² core size cables
- Provides flameproof sealing and mechanical protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced in high voltage and flameproof equipment to ensure compliance and safety.
Applications
- High voltage cable terminations
- Flameproof electrical installations
- Industrial and hazardous area electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Supports safe electrical installations minimizing risk of environmental hazards
Warranty Information
1 year warranty covering manufacturing defects.
Available Now
The Ausproof Ex Armoured PILC Gland 63 - 68 mm SS is available for immediate purchase, ideal for high voltage and hazardous area electrical installations.
