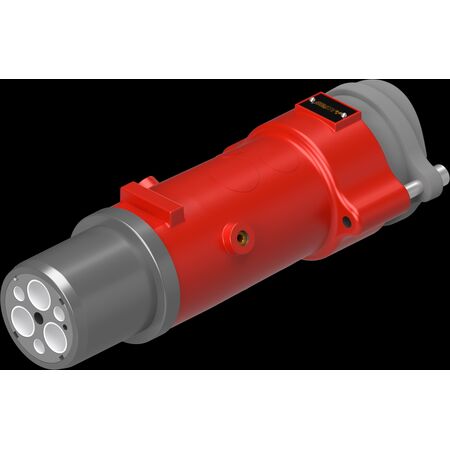

Ex-Certified 300A 6P Plug | 660V to 3300V | IP55 Rated | Quick Release Mechanism by Ausproof
The Ex-certified 300A 6P plug is designed for mining and tunnelling operations, offering a voltage range of 660V to 3300V and IP55 ingress protection. Built for industrial applications, it features a quick release mechanism and durable stainless steel construction for reliable, flameproof electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: PL 3300V 300A 6P Plug (270) 95-C 65-70-G (245.3)
Brand: Ausproof
SKU: RS2204
Alternatively Known As: Ex-certified 300A 6-pin plug, Flameproof industrial plug, Mining electrical plug, PL Range plug
Technical Specifications
- Voltage Range: 660V to 3300V
- Current Rating: 300A to 425A
- Material: Stainless Steel
- Ingress Protection: IP55
- Through Fault Current (Phase): 2 tests at 25.0kA for 0.2 seconds
- Through Fault Current (Earth): 2 tests at 8.0kA for 0.2 seconds
- AC High Voltage Withstand (Phase): 8.6kV for one minute
- AC High Voltage Withstand (Pilot): 1.0kV for one minute
- Temperature Rise: Rated for 300A and 425A
- Compliance: AS/NZS 1299, IEC 60079-0, IEC 60079-1
- Dimensions (H x L x W): 70mm x 270mm x 245mm
- Weight: 9.0 kg
Key Features
- Quick Release mechanism for ease of use
- Single piece contacts to prevent hot joints
- Easy termination and flameproof repair
- Full solid earth connectivity throughout the product
- Full phase to phase segregation with earth
- Lightest Ex product on the market
- Silicone Protection Cover included
- Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles
Professional Installation Requirements
- Installation should be performed by qualified electricians trained in hazardous area electrical equipment to ensure compliance with safety standards.
Applications
- Mining and tunnelling operations
- Commercial applications in Group 1 hazardous environments
- Industrial low voltage electrical connections requiring flameproof plugs
Standards & Compliance
- Complies with AS/NZS 1299 – Electrical Equipment for Explosive Atmospheres
Environmental Benefits
- Durable stainless steel construction reduces need for frequent replacements
- Easy on-site flameproof repair minimizes waste and downtime
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Ausproof PL 3300V 300A 6P Plug is available for immediate purchase, ideal for mining, tunnelling, and hazardous commercial applications requiring robust and flameproof electrical connections.
