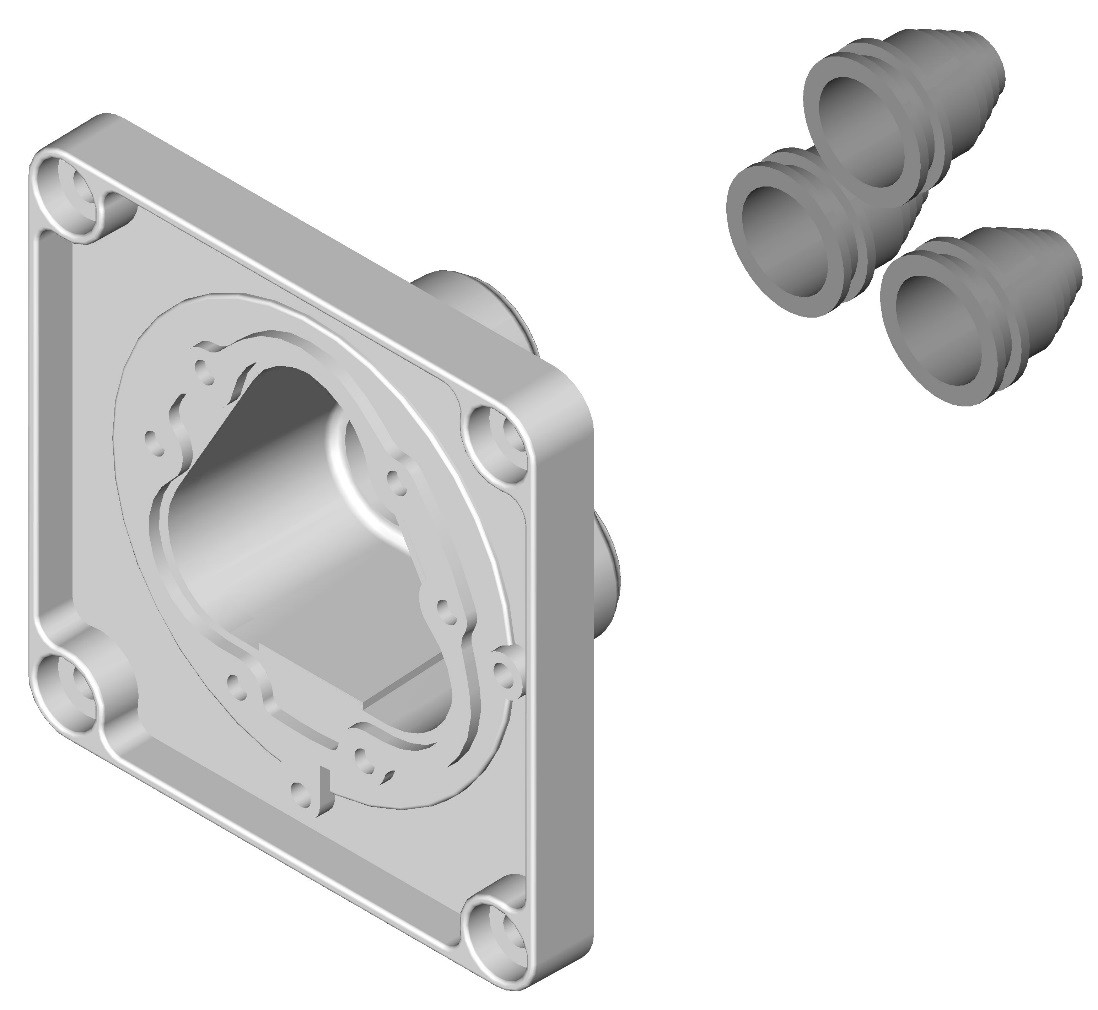

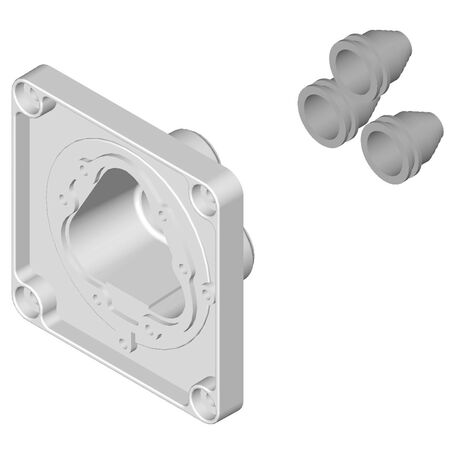

Ex118B Adaptor Flange SS | 11kV Voltage Rating | 800A Current Rating | Flameproof Design | by Ausproof
The Ex118B Adaptor Flange SS is engineered for high voltage applications, rated for 11,000 volts and 800 amps. Constructed from durable Stainless Steel 304, it offers exceptional corrosion resistance and is designed for flameproof environments. Ideal for industrial and mining installations, this flange ensures safe and reliable electrical connections in hazardous atmospheres.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ex118B Adaptor Flange SS | 11kV Voltage Rating | 800A Current Rating | Flameproof Design | by Ausproof
Brand: Ausproof
SKU: RS944SS
Alternatively Known As: 11kV Adaptor Flange, Stainless Steel Flange, High Voltage Flameproof Flange
Technical Specifications
- Material: Stainless Steel 304
- Voltage Rating: 11,000 V
- Current Rating: 800 A

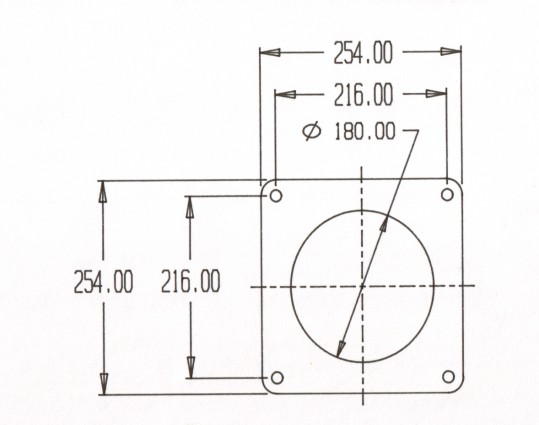

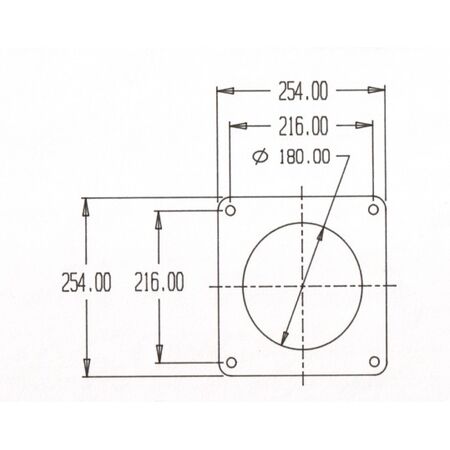

- Dimensions (H x L x W): 50mm x 300mm x 300mm
- Weight: 15 kg
Key Features
- Constructed from durable Stainless Steel 304 for corrosion resistance
- Rated for 11,000 volts and 800 amps
- Designed for flameproof high voltage applications
Professional Installation Requirements
- Installation must be performed by qualified electrical professionals experienced in high voltage and flameproof equipment to ensure safety and compliance.
Applications
- High voltage electrical installations requiring flameproof components
- Industrial and mining environments with hazardous atmospheres
- Electrical equipment connections in explosive environments
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Stainless steel construction ensures long service life reducing replacement waste
- Supports safe operation in hazardous environments preventing environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to Ausproof for detailed warranty terms.
Available Now
The Ausproof Ex118B Adaptor Flange Stainless Steel 304 11kV 800A is available for immediate purchase, ideal for high voltage flameproof electrical installations.
