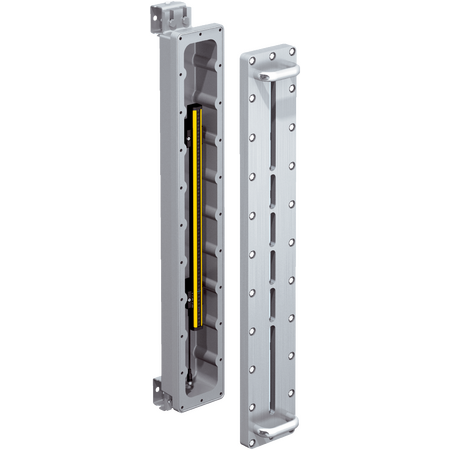

EXS-12D6613A020 | Safety light curtains

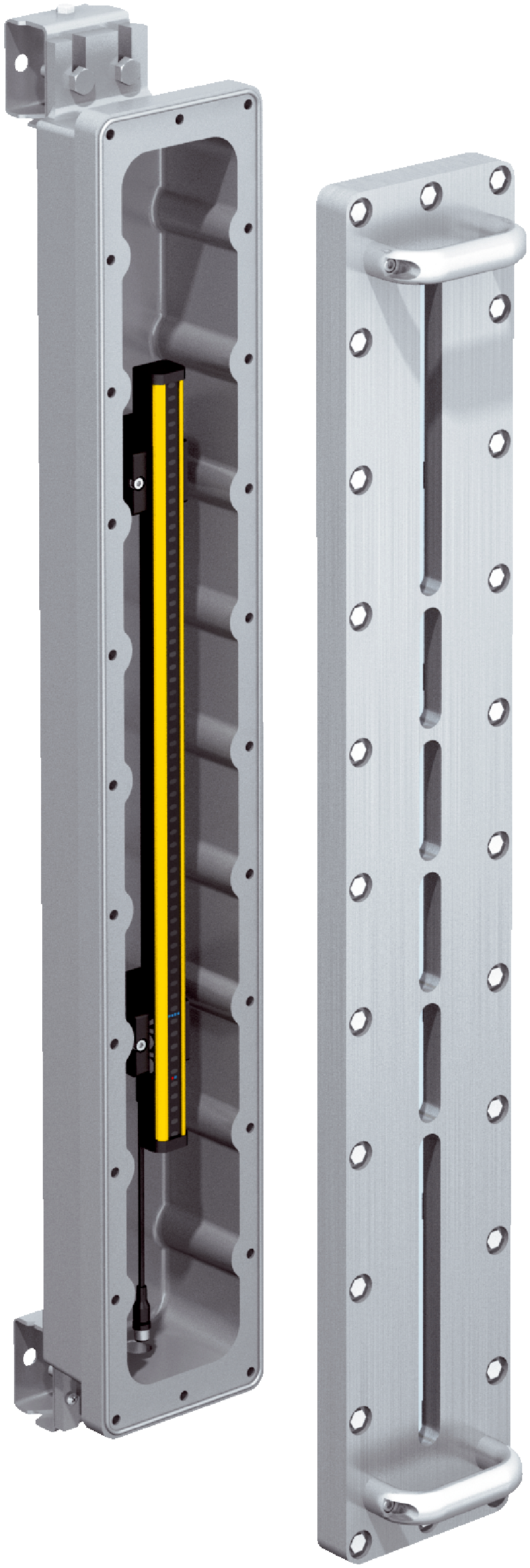

The SICK EXS-12D6613A020 safety light curtain is designed for use in explosive areas, providing high safety integrity with Type 4 protection, SIL 3, and PL e ratings. It features optical synchronization, laser alignment, and robust explosion-proof housing.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EXS-12D6613A020 | Safety light curtains
Brand: SICK
SKU: 1097711
Alternatively Known As: Explosion-proof safety light curtain, Industrial safety light barrier, SICK EXS safety sensor
Technical Specifications
- Product version: deTec4 Ex
- Application: Explosive areas
- Ex-approvals: ATEX II 2 G Ex db IIB T6 Gb, II 2 D Ex tb IIIC T56°C Db IP6X, NFPA 70/NEC 500 Class I, Div. 1 Groups C and D, Class II Div. 1 Groups E, F, G, Class III Div. 1
- System part: Sender
- Resolution: 30 mm
- Scanning range: 25.2 m
- Protective field height: 1200 mm
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 15.3 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- Protection class: III (IEC 61140)
- Supply voltage: 24 V DC (19.2 - 28.8 V)
- Power consumption typical: 1.68 W
- Enclosure rating: IP65/IP66 (IEC 60529)
- Operating temperature: -20°C to +55°C
- Storage temperature: -30°C to +70°C
- Air humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Housing material: Aluminum cast/AlSi7Mg0.6
- Laser class: 1
- Wavelength: 650 nm visible red light
- Dimensions (H x L x W): 142mm x 150mm x 162mm
- Weight: 5 kg
Key Features
- Type 4 safety light curtain with SIL 3 and PL e safety integrity levels
- Explosion-proof enclosure suitable for gas and dust explosive atmospheres
- Optical synchronization and integrated laser alignment aid
- Protective field height of 1200 mm and scanning range of 25.2 m
- Automatic calibration of protective field width and beam coding
- LED display elements for status indication
Professional Installation Requirements
- Installation must be performed by qualified personnel familiar with explosion-proof equipment and safety light curtains, following all relevant safety standards and regulations.
Applications
- Industrial safety in explosive areas
- Machine safeguarding
- Hazardous environment protection
Standards & Compliance
- AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable aluminum housing reduces material waste through long service life
- Low power consumption of 1.68 W reduces energy usage
- Supports safe operation in hazardous environments, preventing accidents and environmental damage
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK EXS-12D6613A020 safety light curtain is available for immediate purchase, ideal for industrial safety applications in explosive environments.
