EXS-12D6803B020 | Safety light curtains

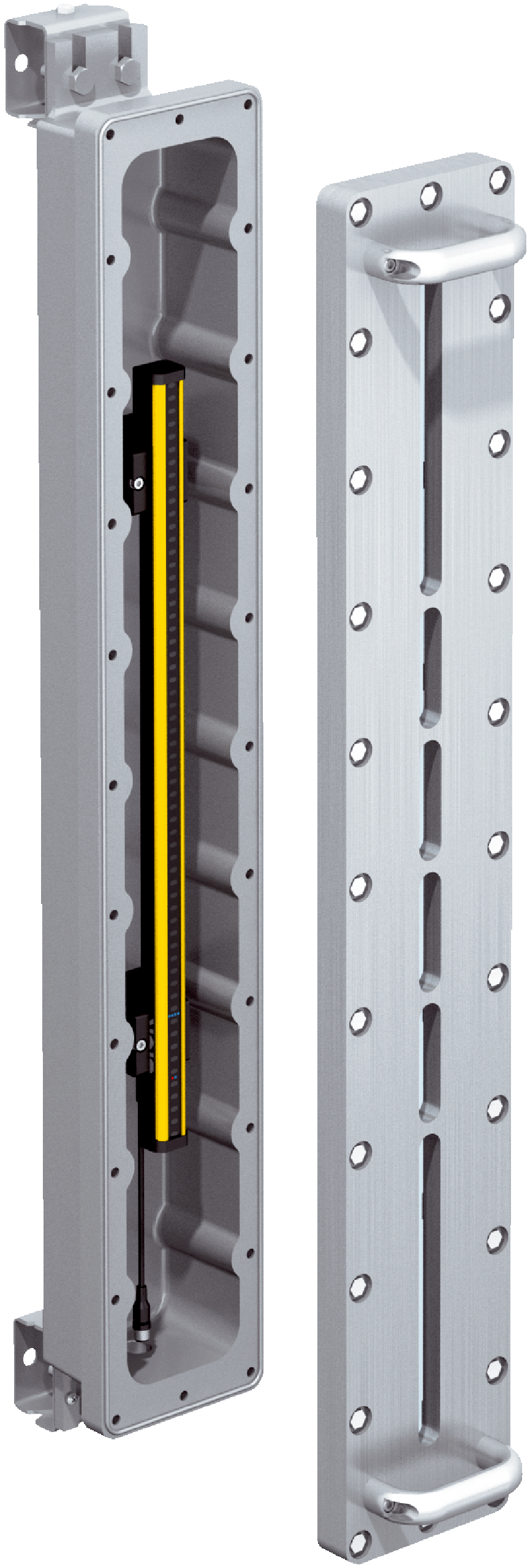

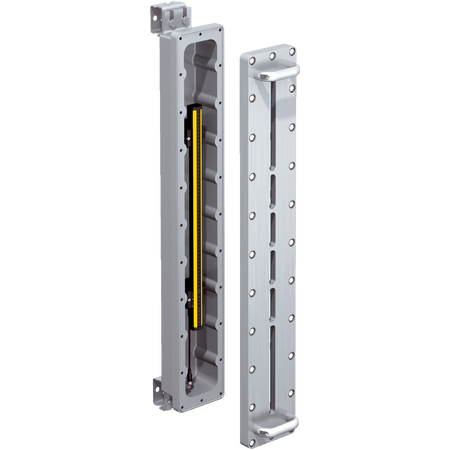

The SICK EXS-12D6803B020 safety light curtain is designed for explosion-proof industrial applications, providing high safety integrity and reliable protection in hazardous environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EXS-12D6803B020 | Safety light curtains
Brand: SICK
SKU: 1068416
Alternatively Known As: Explosion-proof safety light curtain, Industrial safety light curtain, Type 4 safety curtain, SIL 3 safety light barrier
Technical Specifications
- Product version: deTec4 Core Ex
- Ex-approvals: ATEX II 2 G Ex db IIB T6 Gb, II 2 D Ex tb IIIC T56°C Db IP6X, NFPA 70/NEC 500 Class I, Div. 1 Groups C and D, Class II, Div. 1 Groups E, F and G, Class III, Div. 1
- Resolution: 30 mm
- Scanning range: 10 m
- Protective field height: 1,500 mm
- Synchronization: Optical
- Safety type: Type 4 (IEC 61496-1)
- Safety integrity level: SIL 3 (IEC 61508)
- Category: Category 4 (ISO 13849-1)
- Performance level: PL e (ISO 13849-1)
- PFHD: 3.7 x 10^-9
- Mission time: 20 years (ISO 13849-1)
- Safe state on fault: At least one OSSD OFF
- Supply voltage: 24 V DC (19.2 V to 28.8 V)
- Power consumption: 1.2 W typical
- Protection class: III (IEC 61140)
- Housing material: Aluminum cast/AlSi7Mg0.6
- Enclosure rating: IP65/IP66 (IEC 60529)
- Operating temperature: -20°C to +55°C
- Storage temperature: -30°C to +70°C
- Humidity: 15% to 95%, non-condensing
- Vibration resistance: 5-150 Hz, 3.5 mm / 1 g
- Shock resistance: 15 g / 6 ms
- Light type: Near-infrared (850 nm), invisible
- Dimensions (H x L x W): 142mm x 1500mm x 162mm
- Weight: 5 kg
Key Features
- Type 4 safety light curtain compliant with IEC 61496-1
- SIL 3 safety integrity level (IEC 61508)
- Category 4 and Performance Level e (ISO 13849-1)
- Optical synchronization with 30 mm resolution
- Protective field height of 1,500 mm and scanning range of 10 m
- Automatic calibration of protective field width
- Explosion-proof enclosure suitable for gas and dust hazardous areas
- LED display elements for status indication
- Robust aluminum cast housing with IP65/IP66 rating
- Wide operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Installation must be performed by qualified professionals familiar with explosion-proof electrical equipment and safety standards.
Applications
- Industrial safety in explosive environments
- Machine safeguarding in hazardous locations
- Automation safety systems requiring explosion-proof equipment
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 1.2 W reduces energy usage
- Robust construction minimizes environmental impact from damage or failure
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK EXS-12D6803B020 safety light curtain is available for immediate purchase, ideal for industrial safety applications in explosive environments.
