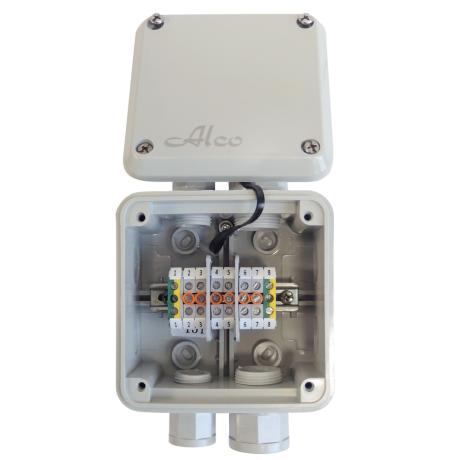

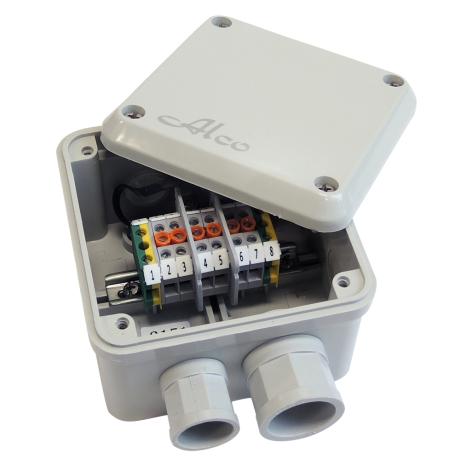

Ezibox Junction Box Weatherproof IP56 PVC Enclosure | 20/25mm Entries | 6x 4mm² Active Terminals | by Wattmaster
The Ezibox Junction Box is a weatherproof IP56 PVC enclosure designed for reliable electrical wiring protection. Featuring 20/25mm cable entries and equipped with 6 active 4mm² terminals, it's perfect for both indoor and outdoor applications. Built with UV stabilised PVC and captive stainless steel screws, this junction box ensures durability and compliance with AS/NZS 60529 standards, making it ideal for residential, commercial, and industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Ezibox Junction Box Weatherproof IP56 PVC Enclosure | 20/25mm Entries | 6x 4mm² Active Terminals | by Wattmaster
Brand: Wattmaster
SKU: ALCEZ1X-130623E
Alternatively Known As: Weatherproof Junction Box, IP56 PVC Enclosure, Electrical Junction Box, Outdoor Junction Box
Technical Specifications
- Material: UV stabilised PVC
- Ingress Protection: IP56 (dust and water resistant)
- Entries: 20mm and 25mm cable entries
- Terminals: 6 x 4mm² active terminals, 2 x earth terminals
- Includes TS15 rail and jumper bars
- Screws: Captive stainless steel
- Compliance: Tested to AS/NZS 60529
- Dimensions (H x L x W): 100mm x 100mm x 150mm
- Weight: 0.5 kg
Key Features
- UV stabilised PVC material for durability and weather resistance
- Captive stainless steel screws for secure assembly
- IP56 rated for dust and water resistance when installed correctly
- Includes TS15 rail and terminal blocks supporting 0.5-4mm² cables
- Equipped with 6 active 4mm² terminals and 2 earth terminals
- Jumper bars included for easy wiring connections
- Tested and compliant with AS/NZS 60529 standards
- Assembled in Australia from imported components
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with IP56 rating and electrical safety standards.
Applications
- Electrical wiring protection in residential, commercial, and industrial settings
- Outdoor and indoor electrical junction box for cable management
- Suitable for use in environments requiring dust and water resistance
Standards & Compliance
- AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
- Durable UV stabilised PVC reduces need for frequent replacements
- Weatherproof design minimizes environmental damage to electrical components
Warranty Information
Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.
Available Now
The Ezibox Weatherproof IP56 PVC Junction Box is available for immediate purchase, ideal for protecting electrical connections in both indoor and outdoor environments.
