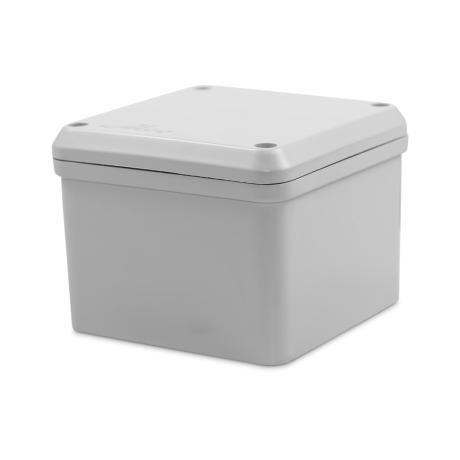

Ezibox Junction Box Weatherproof IP66 PVC Enclosure | High Impact Resistance | Gasketed Lid | by Wattmaster

BRAND: Wattmaster
SKU: ALCEZIBOX3
$38.70 List price: $46.90
+
The Ezibox Junction Box is a weatherproof IP66-rated PVC enclosure designed for reliable electrical junction and control applications. With a high impact resistance and a gasketed lid for enhanced sealing, it's perfect for both indoor and outdoor use, ensuring protection against dust and water. Ideal for residential, commercial, and industrial wiring, this enclosure guarantees safety and durability in harsh environments.

Product Name/Title: Ezibox Junction Box Weatherproof IP66 PVC Enclosure | High Impact Resistance | Gasketed Lid | by Wattmaster

Brand: Wattmaster

SKU: ALCEZIBOX3

Alternatively Known As: Weatherproof Junction Box, IP56 PVC Enclosure, Electrical Junction Box, Control Enclosure

Technical Specifications
  • Material: PVC
  • Ingress Protection: IP66 (dust and water resistant when installed correctly)
  • Dimensions: 120mm x 120mm x 90mm
  • High impact resistance
  • Fully insulated and sealed cover
  • Compliant with AS/NZS 60529
  • Threaded entries for conduit and cable entry
  • Dimensions (H x L x W): 90mm x 120mm x 120mm
  • Weight: 0.3 kg
Key Features
  • Professional wide-ranging solution for junction boxes and control enclosures
  • Gasketed lid for enhanced sealing
  • IP66 rated for dust and water resistance when installed correctly
  • High impact resistance and fully insulated
  • Sealed cover to prevent ingress of contaminants
  • Knockouts for conduit and cable entry
  • Corrosion free PVC construction
  • Threaded entries compatible with ALCEZIBOX0 & ALCEZIX1
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure correct sealing and compliance with IP66 rating.
Applications
  • Electrical junction box for residential, commercial, and industrial wiring
  • Control enclosure for protecting electrical connections
  • Suitable for outdoor and indoor use where weatherproof protection is required
Standards & Compliance
  • Complies with AS/NZS 60529 – Degrees of protection provided by enclosures (IP Code)
Environmental Benefits
  • Corrosion-free PVC material extends product life reducing waste
  • Weatherproof design minimizes need for frequent replacements
  • Fully insulated enclosure enhances electrical safety and reduces risk of faults
Warranty Information

Standard manufacturer warranty applies; please refer to Wattmaster for specific warranty details.

Available Now

The Ezibox Junction Box Weatherproof IP56 PVC Enclosure 120x120x90mm Grey is available for immediate purchase, ideal for electrical junction and control enclosure applications in harsh environments.
