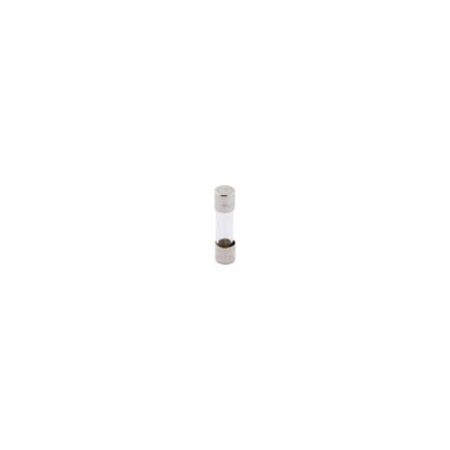

Fast-Acting 1A Buss Fuse | 250 Vac | Glass Tube Construction | Non-Indicating by Eaton

BRAND: Eaton
SKU: S500-1-R
$0.30 List price: $0.40
+ −
30 Days Return Delivery Options
Fast-acting 1A Buss fuse designed for electronic circuits, offering a voltage rating of 250 Vac and a maximum voltage drop of 200 mV. Ideal for quick response to overcurrent situations, this fuse features a durable glass tube construction with nickel-plated end-caps, ensuring reliable performance and safety compliance.

Product Name/Title: Fast-Acting 1A Buss Fuse | 250 Vac | Glass Tube Construction | Non-Indicating by Eaton

Brand: Eaton

SKU: S500-1-R

Alternatively Known As: Bussmann S500 1 Amp Fuse, Eaton Fast-Acting Fuse 1A, S500-1-R Fuse

Technical Specifications
  • Amperage Rating: 1 A
  • Voltage Rating: 250 Vac or less, 32 Vdc (self certified)
  • Interrupt Rating: 35 AIC at 250 Vac
  • Frequency Rating: 50 Hz
  • Voltage Drop: 200 mV maximum
  • Fuse Indicator: Non-indicating
  • Connection: Ferrule end x ferrule end
  • Material: Glass tube with nickel-plated end-cap construction
  • Type: Electronic
  • Dimensions (H x L x W): 5.2mm x 20.5mm x 5.2mm
  • Weight: 0.00067 kg
Key Features
  • Fast-acting fuse for quick response to overcurrent
  • Glass tube with nickel-plated end-cap construction
  • Non-indicating fuse type
  • Interrupt rating of 35 AIC at 250 Vac
  • Voltage drop maximum 200 mV
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure proper fuse selection and safety compliance.
Applications
  • Electronic circuits requiring fast-acting fuse protection
Standards & Compliance
  • Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
  • RoHS compliant ensuring reduced hazardous substances
  • CE marked for safety and environmental standards
Warranty Information

Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.

Available Now

The Eaton S500 1A Bussmann Fast-Acting Fuse is available for immediate purchase, ideal for electronic circuit protection applications.
