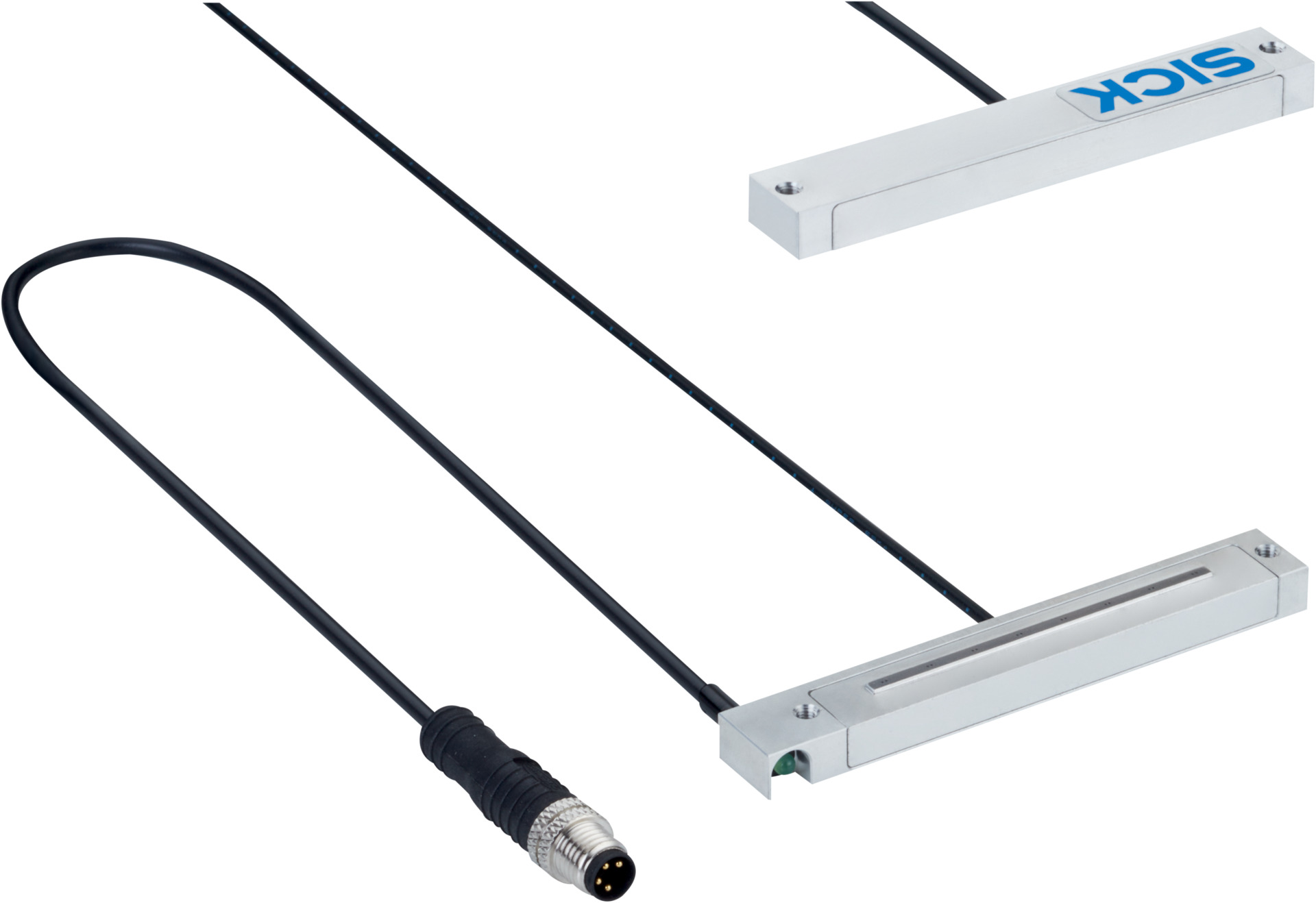

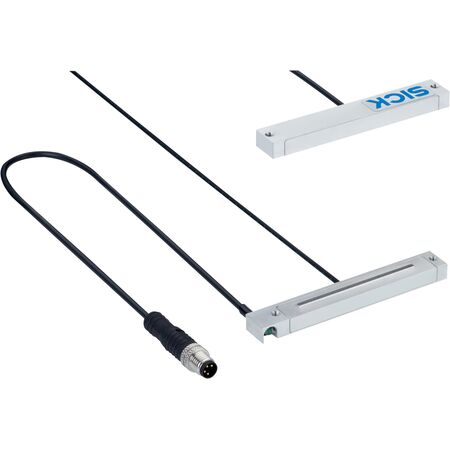

Fiber Optic Cable Sensor LL3-TS15S01 | Through-Beam System | 90° Deflection | Multi-Fiber Core | by SICK
The LL3-TS15S01 fiber optic cable sensor is designed for area detection in industrial automation, featuring a through-beam system with a sender and receiver. Its flat type head with 90° deflection and 60° angle of dispersion ensures precise detection, while the durable aluminum construction enhances longevity. Ideal for use with compatible fiber-optic amplifiers, this sensor improves process efficiency and reduces waste.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Device type: Fiber-optic cables
- Functional principle: Through-beam system with sender and receiver
- Fiber-optic head design: Flat type, 90° deflection, Array
- Angle of dispersion: 60°
- Integrated lens: No
- Compatibility tip adapters: No
- Compatibility with infrared light: No
- Optical fiber cable can be shortened: Yes
- Optical fiber head material: Aluminum (Al)
- Light emission: Radial
- Optical fiber head array width: 50 mm
- Fiber length: 1410 mm
- Dynamic flexibility (robotics): No
- Outside diameter of optical fiber cable connection: 2.2 mm
- Fiber arrangement: Multi-fiber
- Core structure: Multi-fiber
- Sheath material: Polyethylene (PE)
- Included with delivery: FC fiber cutter (5304141)
- Dimensions (H x L x W): 20mm x 1410mm x 50mm
- Weight: 0.1 kg
Key Features
- Through-beam system consisting of a sender and a receiver
- Flat type fiber-optic head with 90° deflection and array design
- Angle of dispersion: 60°
- Optical fiber cable can be shortened without adapter end sleeves
- Includes FC fiber cutter (5304141)
- Optical fiber head made of aluminum with radial light emission
- Fiber length: 1410 mm with multi-fiber core structure
- Sheath material: Polyethylene (PE)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Area detection in industrial automation
- Use with compatible fiber-optic amplifiers WLL80, WLL180, GLL170(T), WLL24 Ex
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables precise detection reducing waste and improving process efficiency
- Durable materials extend product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK LL3-TS15S01 fiber-optic cable is available for immediate purchase, ideal for industrial automation and area detection applications.
