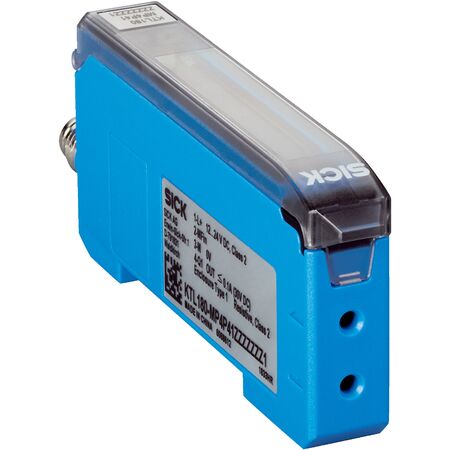

Fiber-Optic Sensor KTL180-MN4P51ZZZZZ | LED Display & Dual Outputs | IP50 Rated | by SICK
The KTL180-MN4P51ZZZZZ fiber-optic sensor is designed for industrial automation, featuring a sensing range of up to 30 mm and dual 4-character LED displays. With a fast response time of 16 µs and protection against reverse polarity, it's perfect for machine safety and monitoring applications, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 24 V DC
- Current consumption: ≥ 50 mA at 24 V
- Switching frequency: 31.2 kHz
- Response time: 16 µs
- Number of switching outputs: 2 (NPN)
- Switching mode: Light/dark switching
- Output current max: 100 mA
- Protection class: III
- Housing material: VISTAL®
- Connection: Cable with M12, 5-pin plug, 300 mm length
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP50
- Dimensions (H x L x W): 33mm x 72mm x 11mm
- Weight: 0.1 kg
Key Features
- Stand-alone device with LED status display and dual 4-character digital displays
- Sensing range up to 30 mm with proximity system
- White LED light source with approx. 65° angle of dispersion
- 1-point, 2-point, and dynamic teach-in modes
- Multi-function input and stand-alone mode
- Adjustable delay time
- Protection against reverse polarity, short-circuit, and interference pulses
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with fiber-optic sensor systems and electrical safety standards.
Applications
- Industrial automation for object detection
- Fiber-optic sensing applications
- Machine safety and monitoring systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 12-24 V DC supply voltage
- Long service life with MTTFD of 296.4 years enhancing sustainability
- Non-volatile memory reduces need for recalibration and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy.
Available Now
The SICK KTL180-MN4P51ZZZZZ fiber-optic sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
