Fibre Optic Cable 12 Core OM4 | Loose Tube | Water Resistant & UV Protected | Blue Nylon Jacket by Cabac
Fibre optic cable with 12 cores and OM4 performance—ideal for high-speed data transmission. Built for network installations, featuring a durable blue nylon jacket for added protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Fibre Optic Cable 12 Core OM4 | Loose Tube | Blue Nylon Jacket by MSS
Brand: Cabac
SKU: CAB-LT-12-MM4
Alternatively Known As: 12 Core OM4 Fibre Optic Cable, Loose Tube Fibre Cable, Blue Nylon Jacketed Fibre Cable, Multimode OM4 Fibre Cable, Underground Fibre Optic Cable
Technical Specifications

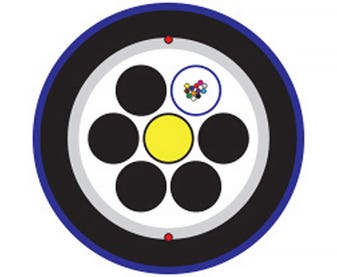

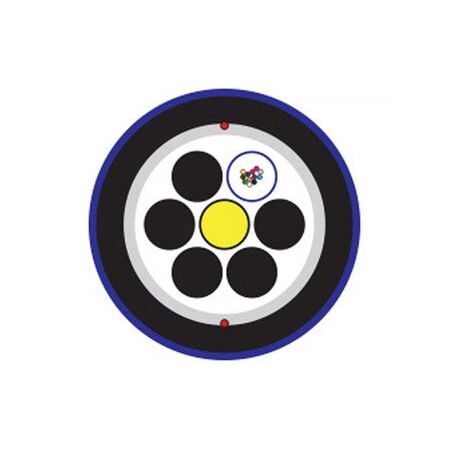

- 12 fibre cores in loose tube construction
- OM4 multimode fibre with 50um core diameter
- Wavelengths supported: 850nm and 1300nm
- Thixotropic gel filled tubes prevent water ingress
- Dry block core with water swellable yarns
- Blue UV and insect/termite resistant Nylon (Polyamide) outer jacket
- Black UV resistant Polyethylene inner sheath
- Non-metallic glass fibre reinforced plastic central strength member
- Polyester rip cords for easy sheath removal
- Dimensions (H x L x W): 10mm x 1000mm x 10mm
- Weight: 0.1 kg
Key Features
- Termite resistant loose tube cable with non-metallic strength member
- Gel filled tubes and dry block core prevent water ingress
- Inner UV resistant Polyethylene (PE) sheath
- Outer termite and UV resistant Polyamide Nylon jacket
- Polyester based rip cords for easy sheath removal
- Water blocking tape and swellable yarns prevent ingress into the core
- Non-metallic glass fibre reinforced plastic central strength member provides tensile strength
Professional Installation Requirements
- Professional installation by certified fibre optic technicians is recommended to ensure optimal performance and compliance with industry standards.
Applications
- External underground cable installations
- Direct burial and conduit/duct applications
- Data networks requiring high-speed multimode fibre optic transmission
Standards & Compliance
- Complies with AS/NZS 3080 for Fibre Optic Cabling and Connectivity
Environmental Benefits
- Durable construction reduces need for frequent replacements
- Water blocking and UV resistant materials extend cable lifespan
- Non-metallic strength member reduces environmental impact compared to metal alternatives
Warranty Information
Standard manufacturer warranty applies. Please refer to Cabac warranty terms for details.
Available Now
The MSS Fibre 12 Core OM4 Loose Tube Blue Nylon Jacketed Cable by Cabac is available for immediate purchase, ideal for external underground fibre optic network installations.
